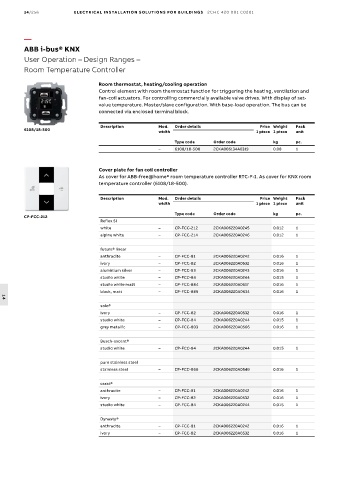

14/256           ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS   2CHC 420 001 C0201




          —
          ABB i-bus® KNX
          User Operation – Design Ranges –
          Room Temperature Controller


                                    Room thermostat, heating/cooling operation
                                    Control element with room thermostat function for triggering the heating, ventilation and
                                    fan-coil actuators. For controlling commercially available valve drives. With display of set-
                                    value temperature. Master/slave configuration. With base-load operation. The bus can be
                                    connected via enclosed terminal block.

                                    Description          Mod.  Order details                Price Weight  Pack
          6108/18-500                                    width                             1 piece 1 piece  unit
                                                              Type code     Order code           kg      pc.
                                                         –    6108/18-500   2CKA006134A0319      0.08    1


                                    Cover plate for fan coil controller
                                    As cover for ABB-free@home® room temperature controller RTC-F-1. As cover for KNX room
                                    temperature controller (6108/18-500).

                                    Description          Mod.  Order details                Price Weight  Pack
                                                         width                             1 piece 1 piece  unit
                                                              Type code     Order code           kg      pc.
         CP-FCC-212
                                    Reflex SI
                                    white                –    CP-FCC-212    2CKA006220A0245      0.012   1
                                    alpine white         –    CP-FCC-214    2CKA006220A0246      0.012   1

                                    future® linear
                                    anthracite           –    CP-FCC-81     2CKA006220A0242      0.016   1
                                    ivory                –    CP-FCC-82     2CKA006220A0532      0.016   1
                                    aluminium silver     –    CP-FCC-83     2CKA006220A0243      0.016   1
                                    studio white         –    CP-FCC-84     2CKA006220A0244      0.015   1
                                    studio white matt    –    CP-FCC-884    2CKA006220A0617      0.016   1
                                    black, matt          –    CP-FCC-885    2CKA006220A0634      0.016   1

  14
                                    solo®
                                    ivory                –    CP-FCC-82     2CKA006220A0532      0.016   1
                                    studio white         –    CP-FCC-84     2CKA006220A0244      0.015   1
                                    grey metallic        –    CP-FCC-803    2CKA006220A0566      0.016   1

                                    Busch-axcent®
                                    studio white         –    CP-FCC-84     2CKA006220A0244      0.015   1

                                    pure stainless steel
                                    stainless steel      –    CP-FCC-866    2CKA006220A0549      0.016   1


                                    carat®
                                    anthracite           –    CP-FCC-81     2CKA006220A0242      0.016   1
                                    ivory                –    CP-FCC-82     2CKA006220A0532      0.016   1
                                    studio white         –    CP-FCC-84     2CKA006220A0244      0.015   1

                                    Dynasty®
                                    anthracite           –    CP-FCC-81     2CKA006220A0242      0.016   1
                                    ivory                –    CP-FCC-82     2CKA006220A0532      0.016   1
