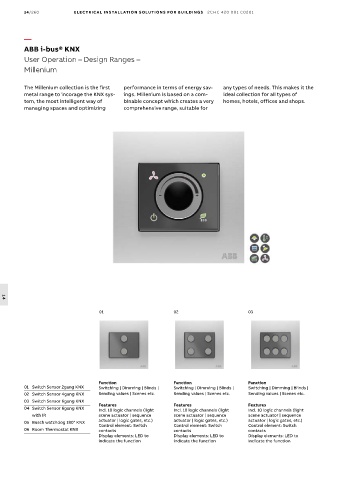

14/260           ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS   2CHC 420 001 C0201




          —
          ABB i-bus® KNX
          User Operation – Design Ranges –
          Millenium


          The Millenium collection is the first   performance in terms of energy sav-  any types of needs. This makes it the
          metal range to incorage the KNX sys-  ings. Millenium is based on a com-  ideal collection for all types of
          tem, the most intelligent way of   binable concept which creates a very   homes, hotels, offices and shops.
          managing spaces and optimizing    comprehensive range, suitable for









































  14
                                    01                        02                        03













                                    Function                  Function                  Function
          01  Switch Sensor 2gang KNX  Switching | Dimming | Blinds |   Switching | Dimming | Blinds |   Switching | Dimming | Blinds |
          02  Switch Sensor 4gang KNX   Sending values | Scenes etc.  Sending values | Scenes etc.  Sending values | Scenes etc.
          03  Switch Sensor 6gang KNX   Features              Features                  Features
          04   Switch Sensor 6gang KNX
                                    Incl. 10 logic channels (light   Incl. 10 logic channels (light   Incl. 10 logic channels (light
            with IR                 scene actuator | sequence   scene actuator | sequence   scene actuator | sequence
          05  Busch watchdog 180° KNX  actuator | logic gates, etc.)  actuator | logic gates, etc.)  actuator | logic gates, etc.)
                                    Control element: Switch   Control element: Switch   Control element: Switch
          06  Room Thermostat KNX   contacts                  contacts                  contacts
                                    Display elements: LED to   Display elements: LED to   Display elements: LED to
                                    indicate the function     indicate the function     indicate the function
