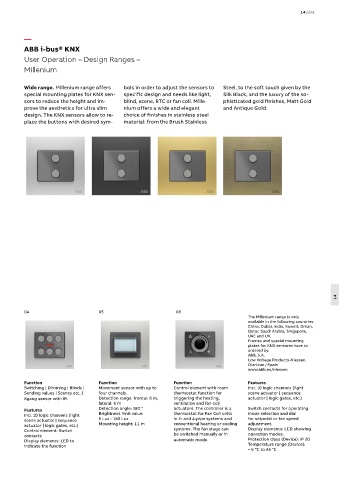

          ABB i-bus® KNX
          User Operation – Design Ranges –
          Millenium


          Wide range. Millenium range offers   bols in order to adjust the sensors to   Steel, to the soft touch given by the
          special mounting plates for KNX sen-  specific design and needs like light,   Silk Black, and the luxury of the so-
          sors to reduce the height and im-  blind, scene, RTC or fan coil. Mille-  phisticated gold finishes, Matt Gold
          prove the aesthetics for ultra slim   nium offers a wide and elegant   and Antique Gold.
          design. The KNX sensors allow to re-  choice of finishes in stainless steel
          place the buttons with desired sym-  material: from the Brush Stainless




































                                                                                                                       14


          04                        05                         06
                                                                                        The Millenium range is only
                                                                                        available in the following countries:
                                                                                        China, Dubai, India, Kuweit, Oman,
                                                                                        Qatar, Saudi Arabia, Singapore,
                                                                                        UAE and UK.
                                                                                        Frames and special mounting
                                                                                        plates for KNX sensores have to
                                                                                        ordered by:
                                                                                        ABB, S.A.
                                                                                        Low Voltage Products-Niessen,
                                                                                        Oiartzun / Spain
                                                                                        www.abb.es/niessen

          Function                  Function                  Function                  Features
          Switching | Dimming | Blinds |   Movement sensor with up to   Control element with room   Incl. 10 logic channels (light
          Sending values | Scenes etc. |    four channels.    thermostat function for   scene actuator | sequence
          6gang sensor with IR.     Detection range: frontal: 6 m,   triggering the heating,   actuator | logic gates, etc.)
                                    lateral: 6 m              ventilation and fan-coil
          Features                  Detection angle: 180 °    actuators. The controller is a   Switch contacts for operating
          Incl. 10 logic channels (light   Brightness limit value:    thermostat for Fan Coil units   mode selection and dial
          scene actuator | sequence   5 Lux - 150 Lux         in 2- and 4-pipe systems and   for setpoint or fan speed
          actuator | logic gates, etc.)  Mounting height: 1.1 m  conventional heating or cooling   adjustment.
          Control element: Switch                             systems. The fan stage can   Display elements: LCD showing
          contacts                                            be switched manually or in   operation modes.
          Display elements: LED to                            automatic mode.           Protection class (Device): IP 20
          indicate the function                                                         Temperature range (Device):
                                                                                        – 5 °C to 45 °C
