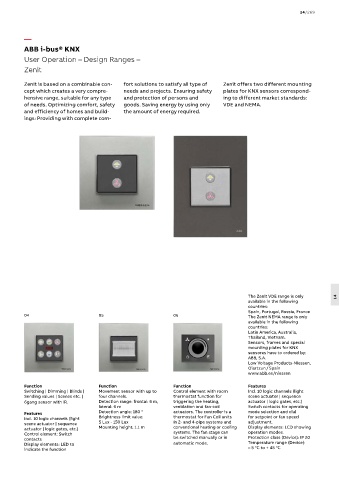

ABB i-bus® KNX
User Operation – Design Ranges –
Zenit

Zenit is based on a combinable con- fort solutions to satisfy all type of Zenit offers two different mounting
cept which creates a very compre- needs and projects. Ensuring safety plates for KNX sensors correspond-
hensive range, suitable for any type and protection of persons and ing to different market standards:
of needs. Optimizing comfort, safety goods. Saving energy by using only VDE and NEMA.
and efficiency of homes and build- the amount of energy required.
ings: Providing with complete com-

The Zenit VDE range is only 14
available in the following
countries:
Spain, Portugal, Russia, France
04 05 06 The Zenit NEMA range is only
available in the following
countries:
Latin America, Australia,
Thailand, Vietnam.
Sensors, frames and special
mounting plates for KNX
sensores have to ordered by:
ABB, S.A.
Low Voltage Products-Niessen,
Oiartzun / Spain
www.abb.es/niessen

Function Function Function Features
Switching | Dimming | Blinds | Movement sensor with up to Control element with room Incl. 10 logic channels (light
Sending values | Scenes etc. | four channels. thermostat function for scene actuator | sequence
6gang sensor with IR. Detection range: frontal: 6 m, triggering the heating, actuator | logic gates, etc.)
lateral: 6 m ventilation and fan-coil Switch contacts for operating
Features Detection angle: 180 ° actuators. The controller is a mode selection and dial
Incl. 10 logic channels (light Brightness limit value: thermostat for Fan Coil units for setpoint or fan speed
scene actuator | sequence 5 Lux - 150 Lux in 2- and 4-pipe systems and adjustment.
actuator | logic gates, etc.) Mounting height: 1.1 m conventional heating or cooling Display elements: LCD showing
Control element: Switch systems. The fan stage can operation modes.
contacts be switched manually or in Protection class (Device): IP 20
Display elements: LED to automatic mode. Temperature range (Device):
indicate the function – 5 °C to + 45 °C
