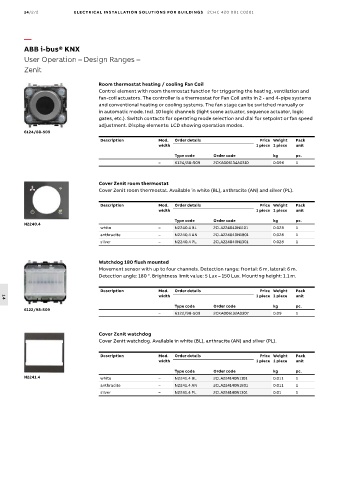

14/272 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Zenit

Room thermostat heating / cooling Fan Coil
Control element with room thermostat function for triggering the heating, ventilation and
fan-coil actuators. The controller is a thermostat for Fan Coil units in 2 - and 4-pipe systems
and conventional heating or cooling systems. The fan stage can be switched manually or
in automatic mode. Incl. 10 logic channels (light scene actuator, sequence actuator, logic
gates, etc.). Switch contacts for operating mode selection and dial for setpoint or fan speed
adjustment. Display elements: LCD showing operation modes.
6124/88-509
Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
– 6124/88-509 2CKA006134A0310 0.096 1

Cover Zenit room thermostat
Cover Zenit room thermostat. Available in white (BL), anthracite (AN) and silver (PL).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
N2240.4
white – N2240.4 BL 2CLA224040N1101 0.028 1
anthracite – N2240.4 AN 2CLA224040N1801 0.028 1
silver – N2240.4 PL 2CLA224040N1301 0.028 1

Watchdog 180 flush mounted
Movement sensor with up to four channels. Detection range: frontal: 6 m, lateral: 6 m.
Detection angle: 180 °. Brightness limit value: 5 Lux – 150 Lux. Mounting height: 1.1 m.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
14
Type code Order code kg pc.
6122/98-509
– 6122/98-509 2CKA006132A0307 0.09 1

Cover Zenit watchdog
Cover Zenit watchdog. Available in white (BL), anthracite (AN) and silver (PL).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
N2241.4 white – N2241.4 BL 2CLA224140N1101 0.011 1
anthracite – N2241.4 AN 2CLA224140N1801 0.011 1
silver – N2241.4 PL 2CLA224140N1301 0.01 1
