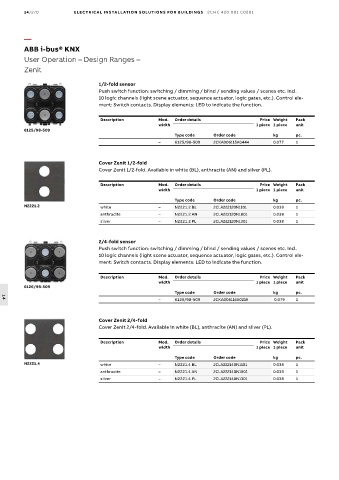

14/270 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Zenit

1/2-fold sensor
Push switch function: switching / dimming / blind / sending values / scenes etc. Incl.
10 logic channels (light scene actuator, sequence actuator, logic gates, etc.). Control ele-
ment: Switch contacts. Display elements: LED to indicate the function.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
6125/98-509
Type code Order code kg pc.
– 6125/98-509 2CKA006115A0444 0.077 1

Cover Zenit 1/2-fold
Cover Zenit 1/2-fold. Available in white (BL), anthracite (AN) and silver (PL).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
N2221.2 white – N2221.2 BL 2CLA222120N1101 0.038 1
anthracite – N2221.2 AN 2CLA222120N1801 0.038 1
silver – N2221.2 PL 2CLA222120N1301 0.038 1

2/4-fold sensor
Push switch function: switching / dimming / blind / sending values / scenes etc. Incl.
10 logic channels (light scene actuator, sequence actuator, logic gates, etc.). Control ele-
ment: Switch contacts. Display elements: LED to indicate the function.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
6126/98-509
Type code Order code kg pc.
– 6126/98-509 2CKA006116A0219 0.079 1
14

Cover Zenit 2/4-fold
Cover Zenit 2/4-fold. Available in white (BL), anthracite (AN) and silver (PL).

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
N2221.4 white – N2221.4 BL 2CLA222140N1101 0.038 1
anthracite – N2221.4 AN 2CLA222140N1801 0.038 1
silver – N2221.4 PL 2CLA222140N1301 0.038 1
