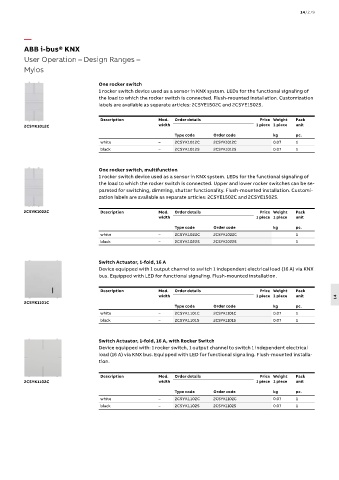

ABB i-bus® KNX
User Operation – Design Ranges –
Mylos

One rocker switch
1 rocker switch device used as a sensor in KNX system. LEDs for the functional signaling of
the load to which the rocker switch is connected. Flush-mounted installation. Customization
labels are available as separate articles: 2CSYE1502C and 2CSYE1502S.

Description Mod. Order details Price Weight Pack
2CSYK1012C width 1 piece 1 piece unit
Type code Order code kg pc.
white – 2CSYK1012C 2CSYK1012C 0.07 1
black – 2CSYK1012S 2CSYK1012S 0.07 1

One rocker switch, multifunction
1 rocker switch device used as a sensor in KNX system. LEDs for the functional signaling of
the load to which the rocker switch is connected. Upper and lower rocker switches can be se-
pareted for switching, dimming, shutter functionality. Flush-mounted installation. Customi-
zation labels are available as separate articles: 2CSYE1502C and 2CSYE1502S.

2CSYK1022C Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – 2CSYK1022C 2CSYK1022C 1
black – 2CSYK1022S 2CSYK1022S 1

Switch Actuator, 1-fold, 16 A
Device equipped with 1 output channel to switch 1 independent electrical load (16 A) via KNX
bus. Equipped with LED for functional signaling. Flush-mounted installation.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit 14
2CSYK1101C
Type code Order code kg pc.
white – 2CSYK1101C 2CSYK1101C 0.07 1
black – 2CSYK1101S 2CSYK1101S 0.07 1

Switch Actuator, 1-fold, 16 A, with Rocker Switch
Device equipped with: 1 rocker switch, 1 output channel to switch 1 independent electrical
load (16 A) via KNX bus. Equipped with LED for functional signaling. Flush-mounted installa-
tion.

Description Mod. Order details Price Weight Pack
2CSYK1102C width 1 piece 1 piece unit
Type code Order code kg pc.
white – 2CSYK1102C 2CSYK1102C 0.07 1
black – 2CSYK1102S 2CSYK1102S 0.07 1
