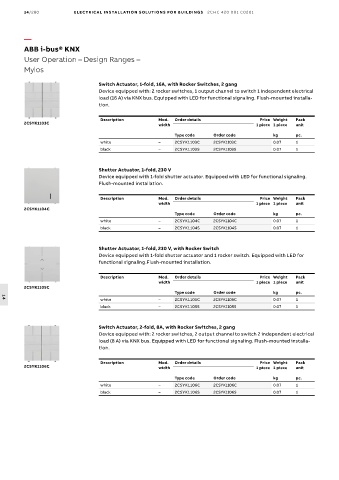

14/280 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Mylos

Switch Actuator, 1-fold, 16A, with Rocker Switches, 2 gang
Device equipped with: 2 rocker switches, 1 output channel to switch 1 independent electrical
load (16 A) via KNX bus. Equipped with LED for functional signaling. Flush-mounted installa-
tion.

Description Mod. Order details Price Weight Pack
2CSYK1103C width 1 piece 1 piece unit
Type code Order code kg pc.
white – 2CSYK1103C 2CSYK1103C 0.07 1
black – 2CSYK1103S 2CSYK1103S 0.07 1

Shutter Actuator, 1-fold, 230 V
Device equipped with 1-fold shutter actuator. Equipped with LED for functional signaling.
Flush-mounted installation.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
2CSYK1104C
Type code Order code kg pc.
white – 2CSYK1104C 2CSYK1104C 0.07 1
black – 2CSYK1104S 2CSYK1104S 0.07 1

Shutter Actuator, 1-fold, 230 V, with Rocker Switch
Device equipped with 1-fold shutter actuator and 1 rocker switch. Equipped with LED for
functional signaling.Flush-mounted installation.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
2CSYK1105C
Type code Order code kg pc.
white – 2CSYK1105C 2CSYK1105C 0.07 1
14
black – 2CSYK1105S 2CSYK1105S 0.07 1

Switch Actuator, 2-fold, 8A, with Rocker Switches, 2 gang
Device equipped with: 2 rocker switches, 2 output channel to switch 2 independent electrical
load (8 A) via KNX bus. Equipped with LED for functional signaling. Flush-mounted installa-
tion.

Description Mod. Order details Price Weight Pack
2CSYK1106C width 1 piece 1 piece unit
Type code Order code kg pc.
white – 2CSYK1106C 2CSYK1106C 0.07 1
black – 2CSYK1106S 2CSYK1106S 0.07 1
