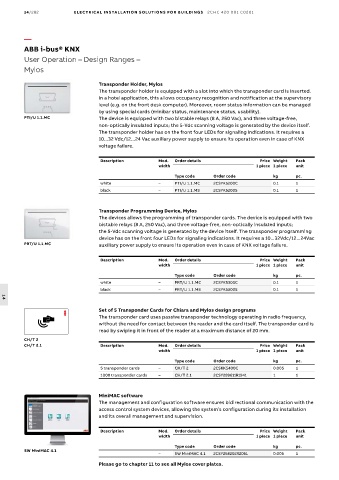

14/282 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Mylos

Transponder Holder, Mylos
The transponder holder is equipped with a slot into which the transponder card is inserted.
In a hotel application, this allows occupancy recognition and notification at the supervisory
level (e.g. on the front desk computer). Moreover, room status information can be managed
by using special cards (minibar status, maintenance status, usability).
PTI/U 1.1.MC The device is equipped with two bistable relays (8 A, 250 Vac), and three voltage-free,
non-optically insulated inputs; the 5-Vdc scanning voltage is generated by the device itself.
The transponder holder has on the front four LEDs for signaling indications. It requires a
10...32 Vdc/12...24 Vac auxiliary power supply to ensure its operation even in case of KNX
voltage failure.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – PTI/U 1.1.MC 2CSYK5200C 0.1 1
black – PTI/U 1.1.MS 2CSYK5200S 0.1 1

Transponder Programming Device, Mylos
The devices allows the programming of transponder cards. The device is equipped with two
bistable relays (8 A, 250 Vac), and three voltage-free, non-optically insulated inputs;
the 5-Vdc scanning voltage is generated by the device itself. The transponder programming
device has on the front four LEDs for signaling indications. It requires a 10...32Vdc/12...24Vac
PRT/U 1.1.MC auxiliary power supply to ensure its operation even in case of KNX voltage failure.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – PRT/U 1.1.MC 2CSYK5300C 0.1 1
black – PRT/U 1.1.MS 2CSYK5300S 0.1 1

14
Set of 5 Transponder Cards for Chiara and Mylos design programs
The transponder card uses passive transponder technology operating in radio frequency,
without the need for contact between the reader and the card itself. The transponder card is
read by swiping it in front of the reader at a maximum distance of 20 mm.
CH/T 2
CH/T 2.1 Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
5 transponder cards – CH/T 2 2CSKK5400C 0.005 1
1000 transponder cards – CH/T 2.1 2CSY289611R1941 1 1

MiniMAC software
The management and configuration software ensures bidirectional communication with the
access control system devices, allowing the system’s configuration during its installation
and its overall management and supervision.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
SW MiniMAC 4.1
– SW MiniMAC 4.1 2CSY258202R2051 0.005 1
Please go to chapter 11 to see all Mylos cover plates.
