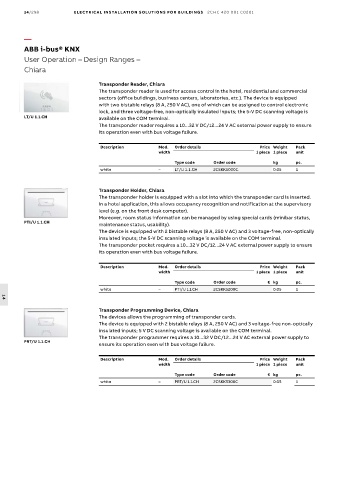

14/298 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
User Operation – Design Ranges –
Chiara

Transponder Reader, Chiara
The transponder reader is used for access control in the hotel, residential and commercial
sectors (office buildings, business centers, laboratories, etc.). The device is equipped
with two bistable relays (8 A, 250 V AC), one of which can be assigned to control electronic
lock, and three voltage-free, non-optically insulated inputs; the 5-V DC scanning voltage is
LT/U 1.1.CH available on the COM terminal.
The transponder reader requires a 10...32 V DC/12...24 V AC external power supply to ensure
its operation even with bus voltage failure.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
white – LT/U 1.1.CH 2CSKK5000C 0.05 1

Transponder Holder, Chiara
The transponder holder is equipped with a slot into which the transponder card is inserted.
In a hotel application, this allows occupancy recognition and notification at the supervisory
level (e.g. on the front desk computer).
Moreover, room status information can be managed by using special cards (minibar status,
PTI/U 1.1.CH
maintenance status, usability).
The device is equipped with 2 bistable relays (8 A, 250 V AC) and 3 voltage-free, non-optically
insulated inputs; the 5-V DC scanning voltage is available on the COM terminal.
The transponder pocket requires a 10...32 V DC/12...24 V AC external power supply to ensure
its operation even with bus voltage failure.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code € kg pc.
white – PTI/U 1.1.CH 2CSKK5200C 0.05 1

14
Transponder Programming Device, Chiara
The devices allows the programming of transponder cards.
The device is equipped with 2 bistable relays (8 A, 250 V AC) and 3 voltage-free non-optically
insulated inputs; 5 V DC scanning voltage is available on the COM terminal.
The transponder programmer requires a 10...32 V DC/12...24 V AC external power supply to
PRT/U 1.1.CH
ensure its operation even with bus voltage failure.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code € kg pc.
white – PRT/U 1.1.CH 2CSKK5300C 0.05 1
