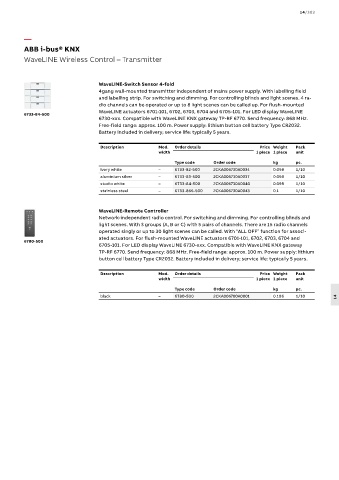

Page 2117 - Din prodcuts 2020

14/303

—
ABB i-bus® KNX
WaveLINE Wireless Control – Transmitter

WaveLINE-Switch Sensor 4-fold
4gang wall-mounted transmitter independent of mains power supply. With labelling field
and labelling strip. For switching and dimming. For controlling blinds and light scenes. 4 ra-
dio channels can be operated or up to 8 light scenes can be called up. For flush-mounted
WaveLINE actuators 6701-101, 6702, 6703, 6704 and 6705-101. For LED display WaveLINE
6733-84-500
6730-xxx. Compatible with WaveLINE KNX gateway TP-RF 6770. Send frequency: 868 MHz.
Free-field range: approx. 100 m. Power supply: lithium button cell battery Type CR2032.
Battery included in delivery; service life: typically 5 years.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
ivory white – 6733-82-500 2CKA006730A0034 0.098 1/10
aluminium silver – 6733-83-500 2CKA006730A0037 0.098 1/10
studio white – 6733-84-500 2CKA006730A0040 0.098 1/10
stainless steel – 6733-866-500 2CKA006730A0043 0.1 1/10

WaveLINE-Remote Controller
Network-independent radio control. For switching and dimming. For controlling blinds and
light scenes. With 3 groups (A, B or C) with 5 pairs of channels. There are 15 radio channels
operated singly or up to 30 light scenes can be called. With “ALL OFF” function for associ-
ated actuators. For flush-mounted WaveLINE actuators 6701-101, 6702, 6703, 6704 and
6780-500
6705-101. For LED display WaveLINE 6730-xxx. Compatible with WaveLINE KNX gateway
TP-RF 6770. Send frequency: 868 MHz. Free-field range: approx. 100 m. Power supply: lithium
button cell battery Type CR2032. Battery included in delivery; service life: typically 5 years.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit

Type code Order code kg pc.
black – 6780-500 2CKA006780A0001 0.186 1/10 14
