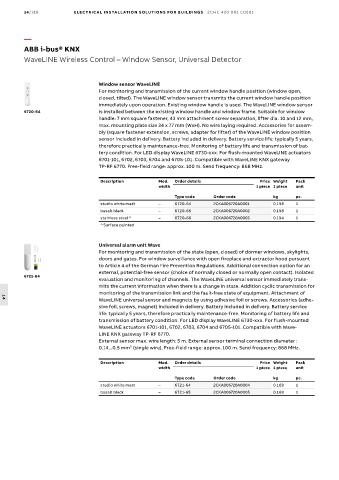

14/310 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB i-bus® KNX
WaveLINE Wireless Control – Window Sensor, Universal Detector

Window sensor WaveLINE
For monitoring and transmission of the current window handle position (window open,
closed, tilted). The WaveLINE window sensor transmits the current window handle position
immediately upon operation. Existing window handle is used. The WaveLINE window sensor
6720-64 is installed between the existing window handle and window frame. Suitable for window
handle: 7 mm square fastener, 43 mm attachment screw separation, lifter dia. 10 and 12 mm,
max. mounting plate size 34 x 77 mm (WxH). No wire laying required. Accessories for assem-
bly (square fastener extension, screws, adapter for lifter) of the WaveLINE window position
sensor included in delivery. Battery included in delivery. Battery service life: typically 5 years,
therefore practically maintenance-free. Monitoring of battery life and transmission of bat-
tery condition. For LED display WaveLINE 6730-xxx. For flush-mounted WaveLINE actuators
6701-101, 6702, 6703, 6704 and 6705-101. Compatible with WaveLINE KNX gateway
TP-RF 6770. Free-field range: approx. 100 m. Send frequency: 868 MHz.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6720-64 2CKA006720A0001 0.198 1
basalt black – 6720-65 2CKA006720A0002 0.198 1
stainless steel 1) – 6720-66 2CKA006720A0003 0.194 1
1) Surface painted

Universal alarm unit Wave
For monitoring and transmission of the state (open, closed) of dormer windows, skylights,
doors and gates. For window surveillance with open fireplace and extractor hood pursuant
to Article 4 of the German Fire Prevention Regulations. Additional connection option for an
external, potential-free sensor (choice of normally closed or normally open contact). Isolated
6721-64
evaluation and monitoring of channels. The WaveLINE universal sensor immediately trans-
mits the current information when there is a change in state. Addition cyclic transmission for
monitoring of the transmission link and the fault-free state of equipment. Attachment of
WaveLINE universal sensor and magnets by using adhesive foil or screws. Accessories (adhe-
14
sive foil, screws, magnet) included in delivery. Battery included in delivery. Battery service
life: typically 5 years, therefore practically maintenance-free. Monitoring of battery life and
transmission of battery condition. For LED display WaveLINE 6730-xxx. For flush-mounted
WaveLINE actuators 6701-101, 6702, 6703, 6704 and 6705-101. Compatible with Wave-
LINE KNX gateway TP-RF 6770.
External sensor max. wire length: 5 m. External sensor terminal connection diameter :
0.14...0.5 mm² (single wire). Free-field range: approx. 100 m. Send frequency: 868 MHz.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
studio white matt – 6721-64 2CKA006720A0004 0.168 1
basalt black – 6721-65 2CKA006720A0005 0.168 1
