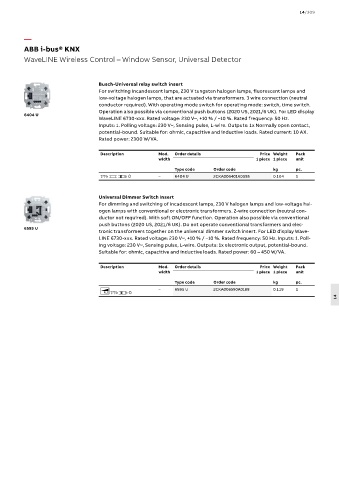

ABB i-bus® KNX
WaveLINE Wireless Control – Window Sensor, Universal Detector

Busch-Universal relay switch insert
For switching incandescent lamps, 230 V tungsten halogen lamps, fluorescent lamps and
low-voltage halogen lamps, that are actuated via transformers. 3 wire connection (neutral
conductor required). With operating mode switch for operating mode: switch, time switch.
Operation also possible via conventional push buttons (2020 US, 2021/6 UK). For LED display
6404 U
WaveLINE 6730-xxx. Rated voltage: 230 V~, +10 % / –10 %. Rated frequency: 50 Hz.
Inputs: 1. Polling voltage: 230 V~, Sensing pulse, L-wire. Outputs: 1x Normally open contact,
potential-bound. Suitable for: ohmic, capacitive and inductive loads. Rated current: 10 AX.
Rated power: 2300 W/VA.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– 6404 U 2CKA006401A0055 0.104 1

Universal Dimmer Switch Insert
For dimming and switching of incadescent lamps, 230 V halogen lamps and low-voltage hal-
ogen lamps with conventional or electronic transformers. 2-wire connection (neutral con-
ductor not required). With soft ON/OFF function. Operation also possible via conventional
push buttons (2020 US, 2021/6 UK). Do not operate conventional transformers and elec-
6595 U
tronic transformers together on the universal dimmer switch insert. For LED display Wave-
LINE 6730-xxx. Rated voltage: 230 V~, +10 % / –10 %. Rated frequency: 50 Hz. Inputs: 1. Poll-
ing voltage: 230 V~, Sensing pulse, L-wire. Outputs: 1x electronic output, potential-bound.
Suitable for: ohmic, capacitive and inductive loads. Rated power: 60 – 450 W/VA.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– 6595 U 2CKA006590A0188 0.119 1
