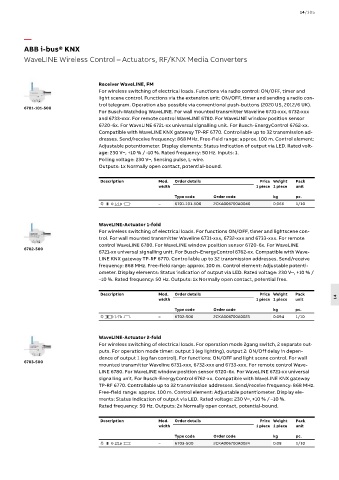

14/305

—
ABB i-bus® KNX
WaveLINE Wireless Control – Actuators, RF/KNX Media Converters

Receiver WaveLINE, FM
For wireless switching of electrical loads. Functions via radio control: ON/OFF, timer and
light scene control. Functions via the extension unit: ON/OFF, timer and sending a radio con-
trol telegram. Operation also possible via conventional push-buttons (2020 US, 2012/6 UK).
6701-101-500
For Busch-Watchdog WaveLINE. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx
and 6733-xxx. For remote control WaveLINE 6780. For WaveLINE window position sensor
6720-6x. For WaveLINE 6721-xx universal signalling unit. For Busch-EnergyControl 6762-xx.
Compatible with WaveLINE KNX gateway TP-RF 6770. Controllable up to 32 transmission ad-
dresses. Send/receive frequency: 868 MHz. Free-field range: approx. 100 m. Control element:
Adjustable potentiometer. Display elements: Status indication of output via LED. Rated volt-
age: 230 V~, +10 % / -10 %. Rated frequency: 50 Hz. Inputs: 1.
Polling voltage: 230 V~, Sensing pulse, L-wire.
Outputs: 1x Normally open contact, potential-bound.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– 6701-101-500 2CKA006700A0040 0.066 1/10

WaveLINE-Actuator 1-fold
For wireless switching of electrical loads. For functions ON/OFF, timer and lightscene con-
trol. For wall mounted transmitter Waveline 6731-xxx, 6732-xxx and 6733-xxx. For remote
control WaveLINE 6780. For WaveLINE window position sensor 6720-6x. For WaveLINE
6702-500
6721-xx universal signalling unit. For Busch-EnergyControl 6762-xx. Compatible with Wave-
LINE KNX gateway TP-RF 6770. Controllable up to 32 transmission addresses. Send/receive
frequency: 868 MHz. Free-field range: approx. 100 m. Control element: Adjustable potenti-
ometer. Display elements: Status indication of output via LED. Rated voltage: 230 V~, +10 % /
–10 %. Rated frequency: 50 Hz. Outputs: 1x Normally open contact, potential free.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit 14
Type code Order code kg pc.
– 6702-500 2CKA006700A0023 0.094 1/10

WaveLINE-Actuator 2-fold
For wireless switching of electrical loads. For operation mode 2gang switch, 2 separate out-
puts. For operation mode timer: output 1 (eg lighting), output 2: ON/Off delay in depen-
dence of output 1 (eg fan control). For functions: ON/OFF and light scene control. For wall
6703-500
mounted transmitter Waveline 6731-xxx, 6732-xxx and 6733-xxx. For remote control Wave-
LINE 6780. For WaveLINE window position sensor 6720-6x. For WaveLINE 6721-xx universal
signalling unit. For Busch-EnergyControl 6762-xx. Compatible with WaveLINE KNX gateway
TP-RF 6770. Controllable up to 32 transmission addresses. Send/receive frequency: 868 MHz.
Free-field range: approx. 100 m. Control element: Adjustable potentiometer. Display ele-
ments: Status indication of output via LED. Rated voltage: 230 V~, +10 % / –10 %.
Rated frequency: 50 Hz. Outputs: 2x Normally open contact, potential-bound.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– 6703-500 2CKA006700A0024 0.08 1/10
