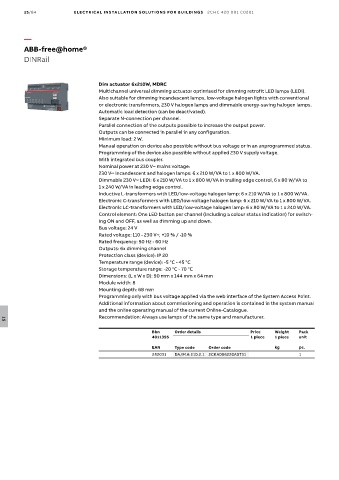

15/84 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
ABB-free@home®
DINRail

Dim actuator 6x210W, MDRC
Multichannel universal dimming actuator optimised for dimming retrofit LED lamps (LEDi).
Also suitable for dimming incandescent lamps, low-voltage halogen lights with conventional
or electronic transformers, 230 V halogen lamps and dimmable energy-saving halogen lamps.
Automatic load detection (can be deactivated).
Separate N-connection per channel.
Parallel connection of the outputs possible to increase the output power.
Outputs can be connected in parallel in any configuration.
Minimum load: 2 W.
Manual operation on device also possible without bus voltage or in an unprogrammed status.
Programming of the device also possible without applied 230 V supply voltage.
With integrated bus coupler.
Nominal power at 230 V~ mains voltage:
230 V~ incandescent and halogen lamps: 6 x 210 W/VA to 1 x 800 W/VA.
Dimmable 230 V~ LEDi: 6 x 210 W/VA to 1 x 800 W/VA in trailing edge control, 6 x 80 W/VA to
1 x 240 W/VA in leading edge control.
Inductive L-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA to 1 x 800 W/VA.
Electronic C-transformers with LED/low-voltage halogen lamp: 6 x 210 W/VA to 1 x 800 W/VA.
Electronic LC-transformers with LED/low-voltage halogen lamp: 6 x 80 W/VA to 1 x 240 W/VA.
Control element: One LED button per channel (including a colour status indication) for switch-
ing ON and OFF, as well as dimming up and down.
Bus voltage: 24 V
Rated voltage: 110 - 230 V~, +10 % / -10 %
Rated frequency: 50 Hz - 60 Hz
Outputs: 6x dimming channel
Protection class (device): IP 20
Temperature range (device): -5 °C - 45 °C
Storage temperature range: -20 °C - 70 °C
Dimensions: (L x W x D): 90 mm x 144 mm x 64 mm
Module width: 8
Mounting depth: 68 mm
Programming only with bus voltage applied via the web interface of the System Access Point.
Additional information about commissioning and operation is contained in the system manual
and the online operating manual of the current Online-Catalogue.
Recommendation: Always use lamps of the same type and manufacturer.
15
Bbn Order details Price Weight Pack
4011395 1 piece 1 piece unit

EAN Type code Order code kg pc.
252031 DA/M.6.210.2.1 2CKA006220A0731 1
