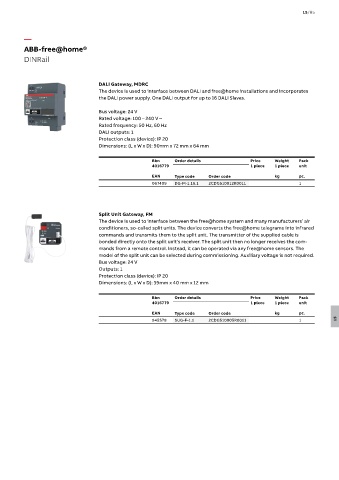

          ABB-free@home®
          DINRail




                                    DALI Gateway, MDRC
                                    The device is used to interface between DALI and free@home installations and incorporates
                                    the DALI power supply. One DALI output for up to 16 DALI Slaves.

                                    Bus voltage: 24 V
                                    Rated voltage: 100 – 240 V ~
                                    Rated frequency: 50 Hz, 60 Hz
                                    DALI outputs: 1
                                    Protection class (device): IP 20
                                    Dimensions: (L x W x D): 90mm x 72 mm x 64 mm


                                                      Bbn     Order details              Price    Weight  Pack
                                                      4016779                            1 piece  1 piece  unit
                                                      EAN     Type code   Order code              kg      pc.
                                                      067409  DG-M-1.16.1  2CDG510012R0011                1




                                    Split Unit Gateway, FM
                                    The device is used to interface between the free@home system and many manufacturers’ air
                                    conditioners, so-called split units. The device converts the free@home telegrams into infrared
                                    commands and transmits them to the split unit. The transmitter of the supplied cable is
                                    bonded directly onto the split unit’s receiver. The split unit then no longer receives the com-
                                    mands from a remote control. Instead, it can be operated via any free@home sensors. The
                                    model of the split unit can be selected during commissioning. Auxiliary voltage is not required.
                                    Bus voltage: 24 V
                                    Outputs: 1
                                    Protection class (device): IP 20
                                    Dimensions: (L x W x D): 39mm x 40 mm x 12 mm


                                                      Bbn     Order details              Price    Weight  Pack
                                                      4016779                            1 piece  1 piece  unit
                                                      EAN     Type code   Order code              kg      pc.
                                                      945578  SUG-F-1.1   2CDG510005R0011                 1            15
