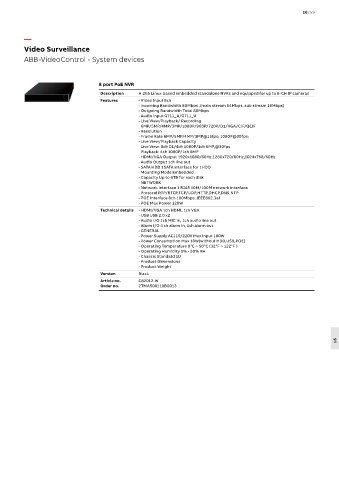

Video Surveillance
ABB-VideoControl - System devices

8 port PoE NVR
Description H.265 Linux-based embedded standalone NVRs and equipped for up to 8-CH IP cameras
Features - Video Input 8ch
- Incoming Bandwidth 80Mbps ,(main stream 64Mbps ,sub stream 16Mbps)
- Outgoing Bandwidth Total 80Mbps
- Audio Input G711_A/G711_U
- Live View/Playback/ Recording
6MP/5MP/4MP/3MP/1080P/960P/720P/D1/VGA/CIF/QCIF
- Resolution
- Frame Rate 6MP/5MP/4MP/3MP@15fps; 1080P@30fps;
- Live View/Playback Capacity
Live View: 8ch D1/4ch 1080P/1ch 6MP,@30fps
Playback: 4ch 1080P/1ch 6MP
- HDMI/VGA Output 1920x1080/60Hz,1280x720/60Hz,1024x768/60Hz
- Audio Output 1ch line out
- SATA HDD 1SATA interface for 1HDD
- Mounting Mode Embedded
- Capacity Up to 6TB for each disk
- NETWORK
- Network Interface 1 RJ45 10M/100M network interface
- Protocol RTP/RTCP,TCP/UDP,HTTP,DHCP,DNS,NTP
- POE Interface 8ch 100Mbps ,IEEE802.3af
- POE Max Power 120W
Technical details - HDMI/VGA 1ch HDMI, 1ch VGA
- USB USB 2.0 x2
- Audio I/O 1ch MIC in, 1ch audio line out
- Alarm I/O 4 ch alarm in, 1ch alarm out
- GENERAL
- Power Supply AC110/220V Max input 180W
- Power Consumption Max 10W(without HDD,USB,POE)
- Operating Temperature 0°C ~ 50°C (32°F ~ 122°F )
- Operating Humidity 0% - 90% RH
- Chassis Standatd 1U
- Product Dimensions
- Product Weight
Version Black
Article no. C82012-W
Order no. 2TMA500110B0013
