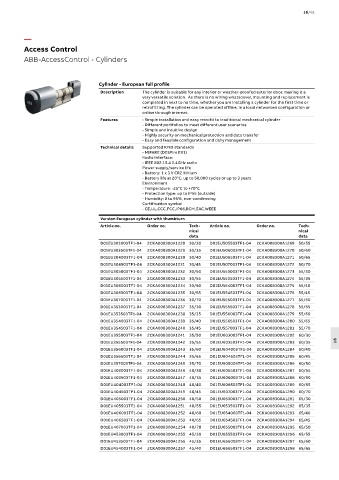

Access Control
ABB-AccessControl - Cylinders

Cylinder - European full profile
Description The cylinder is suitable for any interior or weather-proofed exterior door, making it a
very versatile solution. As there is no wiring whatsoever, mounting and replacement is
completed in next to no time, whether you are installing a cylinder for the first time or
retrofitting. The cylinder can be operated offline, in a local networked configuration or
online through internet.
Features - Simple installation and easy retrofit to traditional mechanical cylinder
- Different portfolios to meet different user scenarios
- Simple and intuitive design
- Highly security on mechanical protection and data transfer
- Easy and feasible configuration and daily management
Technical details Supported RFID standards
- MIFARE (DESFire EV1)
Radio interface:
- IEEE 802.15.4 2.4GHz radio
Power supply/service life
- Battery: 1 x 3 V CR2 lithium
- Battery life at 20°C: up to 50,000 cycles or up to 3 years
Environment
- Temperature: -25°C to +70°C
- Protection type: up to IP55 (outside)
- Humidity: 0 to 95%, non-condensing
Certification symbol
- CE,UL,CCC,FCC,IP66,RCM,EAC,WEEE
Version European cylinder with thumbturn
Article no. Order no. Tech- Article no. Order no. Tech-
nical nical
data data
D01EU303003TF1-04 2CKA008300A1228 30/30 D01EU505503TF1-04 2CKA008300A1269 50/55
D01EU303503TF1-04 2CKA008300A1229 30/35 D01EU506003TF1-04 2CKA008300A1270 50/60
D01EU304003TF1-04 2CKA008300A1230 30/40 D01EU506503TF1-04 2CKA008300A1271 50/65
D01EU304503TF1-04 2CKA008300A1231 30/45 D01EU507003TF1-04 2CKA008300A1272 50/70
D01EU305003TF1-04 2CKA008300A1232 30/50 D01EU553003TF1-04 2CKA008300A1273 55/30
D01EU305503TF1-04 2CKA008300A1233 30/55 D01EU553503TF1-04 2CKA008300A1274 55/35
D01EU306003TF1-04 2CKA008300A1234 30/60 D01EU554003TF1-04 2CKA008300A1275 55/40
D01EU306503TF1-04 2CKA008300A1235 30/65 D01EU554503TF1-04 2CKA008300A1276 55/45
D01EU307003TF1-04 2CKA008300A1236 30/70 D01EU555003TF1-04 2CKA008300A1277 55/50
D01EU353003TF1-04 2CKA008300A1237 35/30 D01EU555503TF1-04 2CKA008300A1278 55/55
D01EU353503TF1-04 2CKA008300A1238 35/35 D01EU556003TF1-04 2CKA008300A1279 55/60
D01EU354003TF1-04 2CKA008300A1239 35/40 D01EU556503TF1-04 2CKA008300A1280 55/65
D01EU354503TF1-04 2CKA008300A1240 35/45 D01EU557003TF1-04 2CKA008300A1281 55/70
D01EU355003TF1-04 2CKA008300A1241 35/50 D01EU603003TF1-04 2CKA008300A1282 60/30
D01EU355503TF1-04 2CKA008300A1242 35/55 D01EU603503TF1-04 2CKA008300A1283 60/35 16
D01EU356003TF1-04 2CKA008300A1243 35/60 D01EU604003TF1-04 2CKA008300A1284 60/40
D01EU356503TF1-04 2CKA008300A1244 35/65 D01EU604503TF1-04 2CKA008300A1285 60/45
D01EU357003TF1-04 2CKA008300A1245 35/70 D01EU605003TF1-04 2CKA008300A1286 60/50
D01EU403003TF1-04 2CKA008300A1246 40/30 D01EU605503TF1-04 2CKA008300A1287 60/55
D01EU403503TF1-04 2CKA008300A1247 40/35 D01EU606003TF1-04 2CKA008300A1288 60/60
D01EU404003TF1-04 2CKA008300A1248 40/40 D01EU606503TF1-04 2CKA008300A1289 60/65
D01EU404503TF1-04 2CKA008300A1249 40/45 D01EU607003TF1-04 2CKA008300A1290 60/70
D01EU405003TF1-04 2CKA008300A1250 40/50 D01EU653003TF1-04 2CKA008300A1291 65/30
D01EU405503TF1-04 2CKA008300A1251 40/55 D01EU653503TF1-04 2CKA008300A1292 65/35
D01EU406003TF1-04 2CKA008300A1252 40/60 D01EU654003TF1-04 2CKA008300A1293 65/40
D01EU406503TF1-04 2CKA008300A1253 40/65 D01EU654503TF1-04 2CKA008300A1294 65/45
D01EU407003TF1-04 2CKA008300A1254 40/70 D01EU655003TF1-04 2CKA008300A1295 65/50
D01EU453003TF1-04 2CKA008300A1255 45/30 D01EU655503TF1-04 2CKA008300A1296 65/55
D01EU453503TF1-04 2CKA008300A1256 45/35 D01EU656003TF1-04 2CKA008300A1297 65/60
D01EU454003TF1-04 2CKA008300A1257 45/40 D01EU656503TF1-04 2CKA008300A1298 65/65
