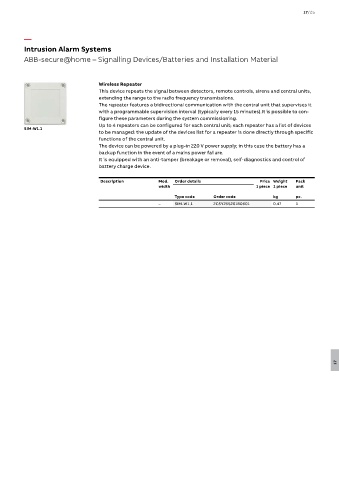

Intrusion Alarm Systems
ABB-secure@home – Signalling Devices/Batteries and Installation Material

Wireless Repeater
This device repeats the signal between detectors, remote controls, sirens and central units,
extending the range to the radio frequency transmissions.
The repeater features a bidirectional communication with the central unit that supervises it
with a programmable supervision interval (typically every 15 minutes).It is possible to con-
figure these parameters during the system commissioning.
Up to 4 repeaters can be configured for each central unit; each repeater has a list of devices
SIM-W1.1
to be managed: the update of the devices list for a repeater is done directly through specific
functions of the central unit.
The device can be powered by a plug-in 220 V power supply; in this case the battery has a
backup function in the event of a mains power failure.
It is equipped with an anti-tamper (breakage or removal), self-diagnostics and control of
battery charge device.

Description Mod. Order details Price Weight Pack
width 1 piece 1 piece unit
Type code Order code kg pc.
– SIM-W1.1 2CSY255201R0601 0.47 1
