18/48 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

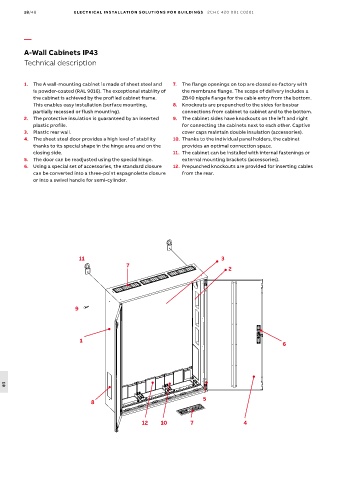

A-Wall Cabinets IP43

Technical description

1. The A wall-mounting cabinet is made of sheet steel and 7. The flange openings on top are closed ex-factory with
is powder-coated (RAL 9016). The exceptional stability of the membrane flange. The scope of delivery includes a
the cabinet is achieved by the profiled cabinet frame. ZB40 nipple flange for the cable entry from the bottom.
This enables easy installation (surface mounting, 8. Knockouts are prepunched to the sides for busbar
partially recessed or flush mounting). connections from cabinet to cabinet and to the bottom.
2. The protective insulation is guaranteed by an inserted 9. The cabinet sides have knockouts on the left and right
plastic profile. for connecting the cabinets next to each other. Captive
3. Plastic rear wall. cover caps maintain double insulation (accessories).
4. The sheet steel door provides a high level of stability 10. Thanks to the individual panel holders, the cabinet
thanks to its special shape in the hinge area and on the provides an optimal connection space.
closing side. 11. The cabinet can be installed with internal fastenings or
5. The door can be readjusted using the special hinge. external mounting brackets (accessories).
6. Using a special set of accessories, the standard closure 12. Prepunched knockouts are provided for inserting cables
can be converted into a three-point espagnolette closure from the rear.
or into a swivel handle for semi-cylinder.

11 3
7
2

9

1
6

18
5
8

12 10 7 4
