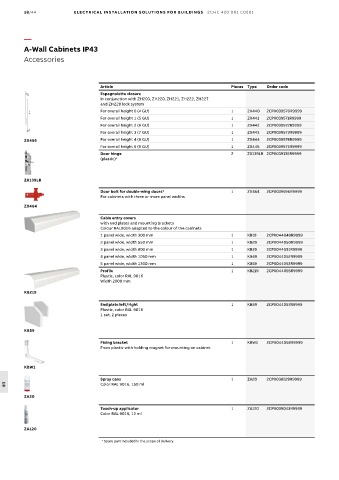

18/44 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
A-Wall Cabinets IP43
Accessories

Article Pieces Type Order code
Espagnolette closure
In conjunction with ZH203, ZH220, ZH221, ZH222, ZH227
and ZH228 lock system
For overall height 0 (4 GU) 1 ZX440 2CPX039570R9999
For overall height 1 (5 GU) 1 ZX441 2CPX039571R9999
For overall height 2 (6 GU) 1 ZX442 2CPX039572R9999
For overall height 3 (7 GU) 1 ZX443 2CPX039573R9999
ZX456 For overall height 4 (8 GU) 1 ZX444 2CPX039574R9999
For overall height 5 (9 GU) 1 ZX445 2CPX039575R9999
Door hinge 2 ZX139LR 2CPX039139R9999
(plastic)*

ZX139LR

Door bolt for double-wing doors* 1 ZX464 2CPX039596R9999
For cabinets with three or more panel widths
ZX464
Cable entry covers
with end plates and mounting brackets
Colour RAL9016 adapted to the colour of the cabinets
1 panel wide, width 300 mm 1 KB19 2CPX044049R9999
2 panel wide, width 550 mm 1 KB29 2CPX044050R9999
3 panel wide, width 800 mm 1 KB39 2CPX044051R9999
4 panel wide, width 1050 mm 1 KB49 2CPX044052R9999
5 panel wide, width 1300 mm 1 KB59 2CPX044053R9999
Profile 1 KB219 2CPX044055R9999
Plastic, color RAL 9016
Width 2000 mm

KB219
End plate left/right 1 KBS9 2CPX044057R9999
Plastic, color RAL 9016
1 set, 2 pieces

KBS9
Fixing bracket 1 KBW1 2CPX044058R9999
From plastic with holding magnet for mounting on cabinet

KBW1

Spray cans 1 ZA20 2CPX038229R9999
Color RAL 9016, 150 ml
18
ZA20

Touch-up applicator 1 ZA120 2CPX039043R9999
Color RAL 9016, 12 ml

ZA120
* Spare part included in the scope of delivery.
