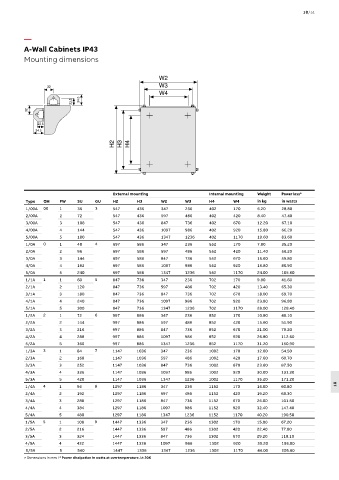

A-Wall Cabinets IP43
Mounting dimensions
W2
W3
W4
.
.
.
.
External mounting Internal mounting Weight Power loss*
Type OH PW SU GU H2 H3 W2 W3 H4 W4 in kg in watts
1/00A 00 1 36 3 547 436 347 236 402 170 6.20 28.80
2/00A 2 72 547 436 597 486 402 420 8.40 47.40
3/00A 3 108 547 436 847 736 402 670 12.20 67.10
4/00A 4 144 547 436 1097 986 402 920 15.80 66.20
5/00A 5 180 547 436 1347 1236 402 1170 19.60 83.60
1/0A 0 1 48 4 697 586 347 236 552 170 7.80 35.20
2/0A 2 96 697 586 597 486 552 420 11.40 56.20
3/0A 3 144 697 586 847 736 552 670 15.60 59.80
4/0A 4 192 697 586 1097 986 552 920 16.80 80.90
5/0A 5 240 697 586 1347 1236 552 1170 24.00 105.60
1/1A 1 1 60 5 847 736 347 236 702 170 9.80 41.60
2/1A 2 120 847 736 597 486 702 420 13.40 65.30
3/1A 3 180 847 736 847 736 702 670 18.00 69.70
4/1A 4 240 847 736 1097 986 702 920 23.80 96.80
5/1A 5 300 847 736 1347 1236 702 1170 28.00 128.40
1/2A 2 1 72 6 997 886 347 236 852 170 10.80 48.10
2/2A 2 144 997 886 597 486 852 420 15.60 51.90
3/2A 3 216 997 886 847 736 852 670 21.00 79.20
4/2A 4 288 997 886 1097 986 852 920 26.80 112.60
5/2A 5 360 997 886 1347 1236 852 1170 31.20 150.90
1/3A 3 1 84 7 1147 1036 347 236 1002 170 12.00 54.50
2/3A 2 168 1147 1036 597 486 1002 420 17.60 60.70
3/3A 3 252 1147 1036 847 736 1002 670 23.60 87.50
4/3A 4 336 1147 1036 1097 986 1002 920 30.00 131.30
5/3A 5 420 1147 1036 1347 1236 1002 1170 35.20 171.20
1/4A 4 1 96 8 1297 1186 347 236 1152 170 14.00 60.80 18
2/4A 2 192 1297 1186 597 486 1152 420 19.20 68.30
3/4A 3 288 1297 1186 847 736 1152 670 26.00 101.50
4/4A 4 384 1297 1186 1097 986 1152 920 32.40 147.40
5/4A 5 480 1297 1186 1347 1236 1152 1170 40.20 190.50
1/5A 5 1 108 9 1447 1336 347 236 1302 170 15.00 67.20
2/5A 2 216 1447 1336 597 486 1302 420 22.40 77.80
3/5A 3 324 1447 1336 847 736 1302 670 29.20 118.10
4/5A 4 432 1447 1336 1097 986 1302 920 35.20 156.00
5/5A 5 540 1447 1336 1347 1236 1302 1170 44.00 205.60
> Dimensions in mm Ι * Power dissipation in watts at overtemperature t 20K
