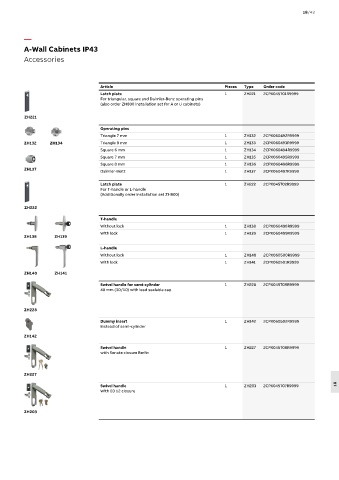

18/43

—
A-Wall Cabinets IP43
Accessories

Article Pieces Type Order code
Latch plate 1 ZH221 2CPX045701R9999
For triangular, square and Daimler-Benz operating pins
(also order ZH800 installation set for A or U cabinets)

ZH221

Operating pins
Triangle 7 mm 1 ZH132 2CPX060492R9999
ZH132 ZH134 Triangle 8 mm 1 ZH133 2CPX060493R9999
Square 6 mm 1 ZH134 2CPX060494R9999
Square 7 mm 1 ZH135 2CPX060495R9999
Square 8 mm 1 ZH136 2CPX060496R9999
ZH137
Daimler-Benz 1 ZH137 2CPX060497R9999
Latch plate 1 ZH222 2CPX045702R9999
For T-handle or L-handle
(Additionally order installation set ZH800)

ZH222

T-handle
Without lock 1 ZH138 2CPX060498R9999
With lock 1 ZH139 2CPX060499R9999
ZH138 ZH139
L-handle
Without lock 1 ZH140 2CPX060500R9999
With lock 1 ZH141 2CPX060501R9999
ZH140 ZH141

Swivel handle for semi-cylinder 1 ZH228 2CPX045709R9999
40 mm (30/10) with lead sealable cap

ZH228

Dummy insert 1 ZH142 2CPX060502R9999
Instead of semi-cylinder
ZH142

Swivel handle 1 ZH227 2CPX045708R9999
with Senate closure Berlin

ZH227
Swivel handle 1 ZH203 2CPX045707R9999 18
With E0 12 closure

ZH203
