18/74 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

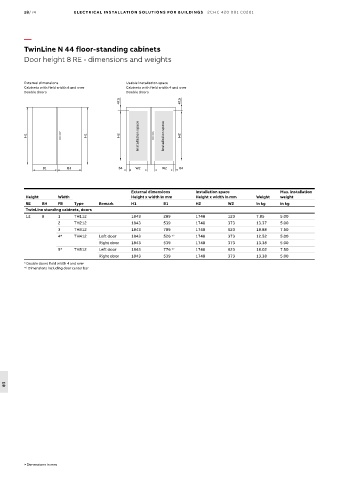

TwinLine N 44 floor-standing cabinets
Door height 8 RE - dimensions and weights

External dimensions Usable installation space
Cabinets with field width 4 and over Cabinets with field width 4 and over
Double doors Double doors
47.5 47.5

H1 H1 H2 Installation space Installation space H2

B1 B1 64 W2 W2 64

External dimensions Installation space Max. installation
Height Width Height x width in mm Height x width in mm Weight weight
RE BH FB Type Remark H1 B1 H2 W2 in kg in kg
TwinLine standing cabinets, doors
12 8 1 TH112 1843 289 1748 123 7.85 5.00
2 TH212 1843 539 1748 373 13.37 5.00
3 TH312 1843 789 1748 623 18.88 7.50
4* TH412 Left door 1843 526 * 2 1748 373 12.52 5.00
Right door 1843 539 1748 373 13.38 5.00
5* TH512 Left door 1843 776 * 2 1748 623 18.02 7.50
Right door 1843 539 1748 373 13.38 5.00
* Double doors field width 4 and over
* 2 Dimensions including door center bar

18

> Dimensions in mm
