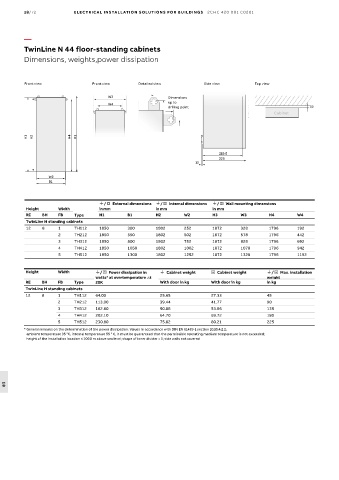

TwinLine N 44 floor-standing cabinets
Dimensions, weights,power dissipation

Front view Front view Detailed view Side view Top view

W3 Dimensions
W4 up to
drilling point 12
Cabinet

H1 H2 H4 H3

219.5
225
12

W2
B1

./ , External dimensions ./ , Internal dimensions ./ , Wall mounting dimensions
Height Width in mm in mm in mm
RE BH FB Type H1 B1 H2 W2 H3 W3 H4 W4
TwinLine H standing cabinets
12 8 1 TH112 1850 300 1802 252 1872 328 1796 192
2 TH212 1850 550 1802 502 1872 578 1796 442
3 TH312 1850 800 1802 752 1872 828 1796 692
4 TH412 1850 1050 1802 1002 1872 1078 1796 942
5 TH512 1850 1300 1802 1252 1872 1328 1796 1192

Height Width ./ , Power dissipation in . Cabinet weight , Cabinet weight ./ , Max. installation
watts* at overtemperature t weight
RE BH FB Type 20K With door in kg With door in kg in kg
TwinLine H standing cabinets
12 8 1 TH112 64.00 25.65 27.33 45
2 TH212 113.00 39.44 41.77 90
3 TH312 162.60 50.88 53.86 135
4 TH412 202.10 64.70 69.72 180
5 TH512 230.80 75.82 80.21 225
* General remarks on the determination of the power dissipation: Values in accordance with DIN EN 61439-1 section 10.10.4.2.2;
ambient temperature 35 °C, internal temperature 55 ° C, it must be guaranteed that the permissible operating medium temperature is not exceeded;
height of the installation location ≤ 2000 m above sea level; shape of inner divider = 1; side walls not covered
