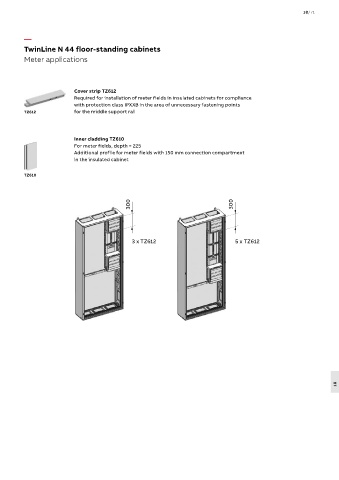

TwinLine N 44 floor-standing cabinets
Meter applications
Cover strip TZ612
Required for installation of meter fields in insulated cabinets for compliance
with protection class IPXXB in the area of unnecessary fastening points
TZ612 for the middle support rail
Inner cladding TZ610
For meter fields, depth = 225
Additional profile for meter fields with 150 mm connection compartment
in the insulated cabinet
TZ610
300 300
3 x TZ612 5 x TZ612
