18/82            ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS   2CHC 420 001 C0201




         —

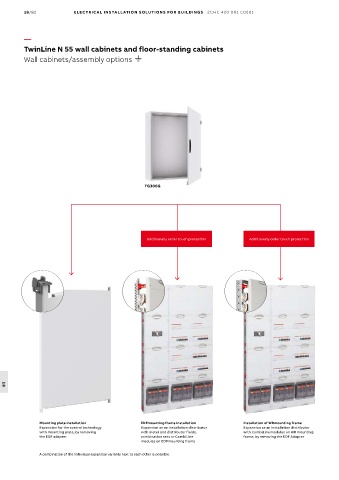

         TwinLine N 55 wall cabinets and floor-standing cabinets
         Wall cabinets/assembly options .


























                                                    TG306G










                                                     Additionally order touch protection  Additionally order touch protection































  18





               Mounting plate installation         EDFmounting frame installation      Installation of WRmounting frame
               Expansion for the control technology   Expansion as an installation distributor   Expansion as an installation distributor
               with mounting plate, by removing    with meter and distributor fields,   with CombiLine modules on WR mounting
               the EDF adapter                     combination sets or CombiLine       frame, by removing the EDF Adapter
                                                   modules on EDFmounting frame

               A combination of the individual expansion variants next to each other is possible.
