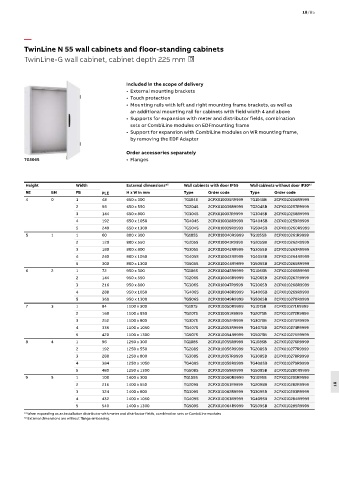

TwinLine N 55 wall cabinets and floor-standing cabinets
TwinLine-G wall cabinet, cabinet depth 225 mm ,

Included in the scope of delivery
• External mounting brackets
• Touch protection
• Mounting rails with left and right mounting frame brackets, as well as
an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with meter and distributor fields, combination
sets or CombiLine modules on EDFmounting frame
• Support for expansion with CombiLine modules on WR mounting frame,
by removing the EDF Adapter

Order accessories separately
TG306S • Flanges

Height Width External dimensions* 2 Wall cabinets with door IP55 Wall cabinets without door IP30* 1
RE BH FB PLE H x W in mm Type Order code Type Order code
4 0 1 48 650 x 300 TG104S 2CPX010035R9999 TG104SB 2CPX010256R9999
2 96 650 x 550 TG204S 2CPX010036R9999 TG204SB 2CPX010257R9999
3 144 650 x 800 TG304S 2CPX010037R9999 TG304SB 2CPX010258R9999
4 192 650 x 1050 TG404S 2CPX010038R9999 TG404SB 2CPX010259R9999
5 240 650 x 1300 TG504S 2CPX010039R9999 TG504SB 2CPX010260R9999
5 1 1 60 800 x 300 TG105S 2CPX010040R9999 TG105SB 2CPX010261R9999
2 120 800 x 550 TG205S 2CPX010041R9999 TG205SB 2CPX010262R9999
3 180 800 x 800 TG305S 2CPX010042R9999 TG305SB 2CPX010263R9999
4 240 800 x 1050 TG405S 2CPX010043R9999 TG405SB 2CPX010264R9999
5 300 800 x 1300 TG505S 2CPX010044R9999 TG505SB 2CPX010265R9999
6 2 1 72 950 x 300 TG106S 2CPX010045R9999 TG106SB 2CPX010266R9999
2 144 950 x 550 TG206S 2CPX010046R9999 TG206SB 2CPX010267R9999
3 216 950 x 800 TG306S 2CPX010047R9999 TG306SB 2CPX010268R9999
4 288 950 x 1050 TG406S 2CPX010048R9999 TG406SB 2CPX010269R9999
5 360 950 x 1300 TG506S 2CPX010049R9999 TG506SB 2CPX010270R9999
7 3 1 84 1100 x 300 TG107S 2CPX010050R9999 TG107SB 2CPX010271R9999
2 168 1100 x 550 TG207S 2CPX010051R9999 TG207SB 2CPX010272R9999
3 252 1100 x 800 TG307S 2CPX010052R9999 TG307SB 2CPX010273R9999
4 336 1100 x 1050 TG407S 2CPX010053R9999 TG407SB 2CPX010274R9999
5 420 1100 x 1300 TG507S 2CPX010054R9999 TG507SB 2CPX010275R9999
8 4 1 96 1250 x 300 TG108S 2CPX010055R9999 TG108SB 2CPX010276R9999
2 192 1250 x 550 TG208S 2CPX010056R9999 TG208SB 2CPX010277R9999
3 288 1250 x 800 TG308S 2CPX010057R9999 TG308SB 2CPX010278R9999
4 384 1250 x 1050 TG408S 2CPX010058R9999 TG408SB 2CPX010279R9999
5 480 1250 x 1300 TG508S 2CPX010059R9999 TG508SB 2CPX010280R9999
9 5 1 108 1400 x 300 TG109S 2CPX010060R9999 TG109SB 2CPX010281R9999
2 216 1400 x 550 TG209S 2CPX010061R9999 TG209SB 2CPX010282R9999 18
3 324 1400 x 800 TG309S 2CPX010062R9999 TG309SB 2CPX010283R9999
4 432 1400 x 1050 TG409S 2CPX010063R9999 TG409SB 2CPX010284R9999
5 540 1400 x 1300 TG509S 2CPX010064R9999 TG509SB 2CPX010285R9999
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
