18/86 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

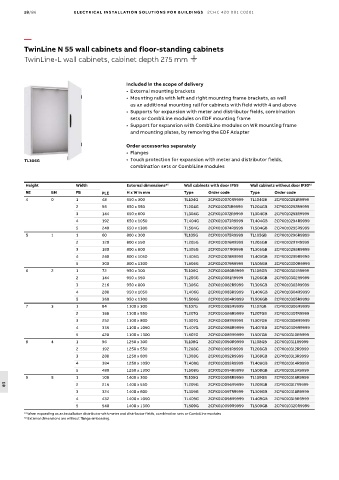

TwinLine N 55 wall cabinets and floor-standing cabinets
TwinLine-L wall cabinets, cabinet depth 275 mm .

Included in the scope of delivery
• External mounting brackets
• Mounting rails with left and right mounting frame brackets, as well
as an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with meter and distributor fields, combination
sets or CombiLine modules on EDF mounting frame
• Support for expansion with CombiLine modules on WR mounting frame
and mounting plates, by removing the EDF Adapter

Order accessories separately
• Flanges
TL306G • Touch protection for expansion with meter and distributor fields,
combination sets or CombiLine modules

Height Width External dimensions* 2 Wall cabinets with door IP55 Wall cabinets without door IP30* 1
RE BH FB PLE H x W in mm Type Order code Type Order code
4 0 1 48 650 x 300 TL104G 2CPX010070R9999 TL104GB 2CPX010291R9999
2 96 650 x 550 TL204G 2CPX010071R9999 TL204GB 2CPX010292R9999
3 144 650 x 800 TL304G 2CPX010072R9999 TL304GB 2CPX010293R9999
4 192 650 x 1050 TL404G 2CPX010073R9999 TL404GB 2CPX010294R9999
5 240 650 x 1300 TL504G 2CPX010074R9999 TL504GB 2CPX010295R9999
5 1 1 60 800 x 300 TL105G 2CPX010075R9999 TL105GB 2CPX010296R9999
2 120 800 x 550 TL205G 2CPX010076R9999 TL205GB 2CPX010297R9999
3 180 800 x 800 TL305G 2CPX010077R9999 TL305GB 2CPX010298R9999
4 240 800 x 1050 TL405G 2CPX010078R9999 TL405GB 2CPX010299R9999
5 300 800 x 1300 TL505G 2CPX010079R9999 TL505GB 2CPX010300R9999
6 2 1 72 950 x 300 TL106G 2CPX010080R9999 TL106GB 2CPX010301R9999
2 144 950 x 550 TL206G 2CPX010081R9999 TL206GB 2CPX010302R9999
3 216 950 x 800 TL306G 2CPX010082R9999 TL306GB 2CPX010303R9999
4 288 950 x 1050 TL406G 2CPX010083R9999 TL406GB 2CPX010304R9999
5 360 950 x 1300 TL506G 2CPX010084R9999 TL506GB 2CPX010305R9999
7 3 1 84 1100 x 300 TL107G 2CPX010085R9999 TL107GB 2CPX010306R9999
2 168 1100 x 550 TL207G 2CPX010086R9999 TL207GB 2CPX010307R9999
3 252 1100 x 800 TL307G 2CPX010087R9999 TL307GB 2CPX010308R9999
4 336 1100 x 1050 TL407G 2CPX010088R9999 TL407GB 2CPX010309R9999
5 420 1100 x 1300 TL507G 2CPX010089R9999 TL507GB 2CPX010310R9999
8 4 1 96 1250 x 300 TL108G 2CPX010090R9999 TL108GB 2CPX010311R9999
2 192 1250 x 550 TL208G 2CPX010091R9999 TL208GB 2CPX010312R9999
3 288 1250 x 800 TL308G 2CPX010092R9999 TL308GB 2CPX010313R9999
4 384 1250 x 1050 TL408G 2CPX010093R9999 TL408GB 2CPX010314R9999
5 480 1250 x 1300 TL508G 2CPX010094R9999 TL508GB 2CPX010315R9999
9 5 1 108 1400 x 300 TL109G 2CPX010095R9999 TL109GB 2CPX010316R9999
2 216 1400 x 550 TL209G 2CPX010096R9999 TL209GB 2CPX010317R9999
18
3 324 1400 x 800 TL309G 2CPX010097R9999 TL309GB 2CPX010318R9999
4 432 1400 x 1050 TL409G 2CPX010098R9999 TL409GB 2CPX010319R9999
5 540 1400 x 1300 TL509G 2CPX010099R9999 TL509GB 2CPX010320R9999
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
