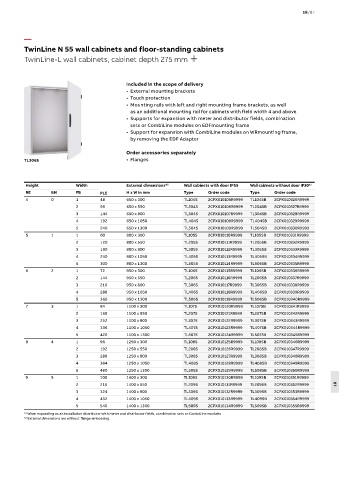

TwinLine N 55 wall cabinets and floor-standing cabinets
TwinLine-L wall cabinets, cabinet depth 275 mm .

Included in the scope of delivery
• External mounting brackets
• Touch protection
• Mounting rails with left and right mounting frame brackets, as well
as an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with meter and distributor fields, combination
sets or CombiLine modules on EDFmounting frame
• Support for expansion with CombiLine modules on WRmounting frame,
by removing the EDF Adapter

Order accessories separately
TL306S • Flanges

Height Width External dimensions* 2 Wall cabinets with door IP55 Wall cabinets without door IP30* 1
RE BH FB PLE H x W in mm Type Order code Type Order code
4 0 1 48 650 x 300 TL104S 2CPX010105R9999 TL104SB 2CPX010326R9999
2 96 650 x 550 TL204S 2CPX010106R9999 TL204SB 2CPX010327R9999
3 144 650 x 800 TL304S 2CPX010107R9999 TL304SB 2CPX010328R9999
4 192 650 x 1050 TL404S 2CPX010108R9999 TL404SB 2CPX010329R9999
5 240 650 x 1300 TL504S 2CPX010109R9999 TL504SB 2CPX010330R9999
5 1 1 60 800 x 300 TL105S 2CPX010110R9999 TL105SB 2CPX010331R9999
2 120 800 x 550 TL205S 2CPX010111R9999 TL205SB 2CPX010332R9999
3 180 800 x 800 TL305S 2CPX010112R9999 TL305SB 2CPX010333R9999
4 240 800 x 1050 TL405S 2CPX010113R9999 TL405SB 2CPX010334R9999
5 300 800 x 1300 TL505S 2CPX010114R9999 TL505SB 2CPX010335R9999
6 2 1 72 950 x 300 TL106S 2CPX010115R9999 TL106SB 2CPX010336R9999
2 144 950 x 550 TL206S 2CPX010116R9999 TL206SB 2CPX010337R9999
3 216 950 x 800 TL306S 2CPX010117R9999 TL306SB 2CPX010338R9999
4 288 950 x 1050 TL406S 2CPX010118R9999 TL406SB 2CPX010339R9999
5 360 950 x 1300 TL506S 2CPX010119R9999 TL506SB 2CPX010340R9999
7 3 1 84 1100 x 300 TL107S 2CPX010120R9999 TL107SB 2CPX010341R9999
2 168 1100 x 550 TL207S 2CPX010121R9999 TL207SB 2CPX010342R9999
3 252 1100 x 800 TL307S 2CPX010122R9999 TL307SB 2CPX010343R9999
4 336 1100 x 1050 TL407S 2CPX010123R9999 TL407SB 2CPX010344R9999
5 420 1100 x 1300 TL507S 2CPX010124R9999 TL507SB 2CPX010345R9999
8 4 1 96 1250 x 300 TL108S 2CPX010125R9999 TL108SB 2CPX010346R9999
2 192 1250 x 550 TL208S 2CPX010126R9999 TL208SB 2CPX010347R9999
3 288 1250 x 800 TL308S 2CPX010127R9999 TL308SB 2CPX010348R9999
4 384 1250 x 1050 TL408S 2CPX010128R9999 TL408SB 2CPX010349R9999
5 480 1250 x 1300 TL508S 2CPX010129R9999 TL508SB 2CPX010350R9999
9 5 1 108 1400 x 300 TL109S 2CPX010130R9999 TL109SB 2CPX010351R9999
2 216 1400 x 550 TL209S 2CPX010131R9999 TL209SB 2CPX010352R9999 18
3 324 1400 x 800 TL309S 2CPX010132R9999 TL309SB 2CPX010353R9999
4 432 1400 x 1050 TL409S 2CPX010133R9999 TL409SB 2CPX010354R9999
5 540 1400 x 1300 TL509S 2CPX010134R9999 TL509SB 2CPX010355R9999
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
