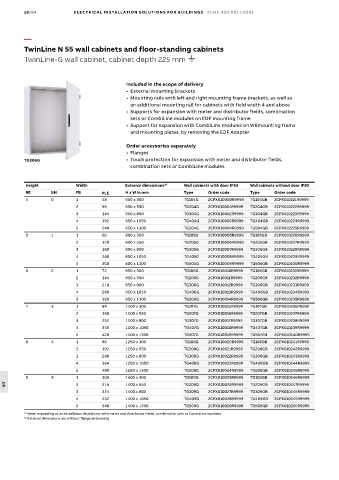

TwinLine N 55 wall cabinets and floor-standing cabinets
TwinLine-G wall cabinet, cabinet depth 225 mm .

Included in the scope of delivery
• External mounting brackets
• Mounting rails with left and right mounting frame brackets, as well as
an additional mounting rail for cabinets with field width 4 and above
• Supports for expansion with meter and distributor fields, combination
sets or CombiLine modules on EDF mounting frame
• Support for expansion with CombiLine modules on WRmounting frame
and mounting plates, by removing the EDF Adapter

Order accessories separately
• Flanges
TG306G • Touch protection for expansion with meter and distributor fields,
combination sets or CombiLine modules

Height Width External dimensions* 2 Wall cabinets with door IP55 Wall cabinets without door IP30
RE BH FB PLE H x W in mm Type Order code Type Order code
4 0 1 48 650 x 300 TG104G 2CPX010000R9999 TG104GB 2CPX010221R9999
2 96 650 x 550 TG204G 2CPX010001R9999 TG204GB 2CPX010222R9999
3 144 650 x 800 TG304G 2CPX010002R9999 TG304GB 2CPX010223R9999
4 192 650 x 1050 TG404G 2CPX010003R9999 TG404GB 2CPX010224R9999
5 240 650 x 1300 TG504G 2CPX010004R9999 TG504GB 2CPX010225R9999
5 1 1 60 800 x 300 TG105G 2CPX010005R9999 TG105GB 2CPX010226R9999
2 120 800 x 550 TG205G 2CPX010006R9999 TG205GB 2CPX010227R9999
3 180 800 x 800 TG305G 2CPX010007R9999 TG305GB 2CPX010228R9999
4 240 800 x 1050 TG405G 2CPX010008R9999 TG405GB 2CPX010229R9999
5 300 800 x 1300 TG505G 2CPX010009R9999 TG505GB 2CPX010230R9999
6 2 1 72 950 x 300 TG106G 2CPX010010R9999 TG106GB 2CPX010231R9999
2 144 950 x 550 TG206G 2CPX010011R9999 TG206GB 2CPX010232R9999
3 216 950 x 800 TG306G 2CPX010012R9999 TG306GB 2CPX010233R9999
4 288 950 x 1050 TG406G 2CPX010013R9999 TG406GB 2CPX010234R9999
5 360 950 x 1300 TG506G 2CPX010014R9999 TG506GB 2CPX010235R9999
7 3 1 84 1100 x 300 TG107G 2CPX010015R9999 TG107GB 2CPX010236R9999
2 168 1100 x 550 TG207G 2CPX010016R9999 TG207GB 2CPX010237R9999
3 252 1100 x 800 TG307G 2CPX010017R9999 TG307GB 2CPX010238R9999
4 336 1100 x 1050 TG407G 2CPX010018R9999 TG407GB 2CPX010239R9999
5 420 1100 x 1300 TG507G 2CPX010019R9999 TG507GB 2CPX010240R9999
8 4 1 96 1250 x 300 TG108G 2CPX010020R9999 TG108GB 2CPX010241R9999
2 192 1250 x 550 TG208G 2CPX010021R9999 TG208GB 2CPX010242R9999
3 288 1250 x 800 TG308G 2CPX010022R9999 TG308GB 2CPX010243R9999
4 384 1250 x 1050 TG408G 2CPX010023R9999 TG408GB 2CPX010244R9999
5 480 1250 x 1300 TG508G 2CPX010024R9999 TG508GB 2CPX010245R9999
9 5 1 108 1400 x 300 TG109G 2CPX010025R9999 TG109GB 2CPX010246R9999
2 216 1400 x 550 TG209G 2CPX010026R9999 TG209GB 2CPX010247R9999
18
3 324 1400 x 800 TG309G 2CPX010027R9999 TG309GB 2CPX010248R9999
4 432 1400 x 1050 TG409G 2CPX010028R9999 TG409GB 2CPX010249R9999
5 540 1400 x 1300 TG509G 2CPX010029R9999 TG509GB 2CPX010250R9999
* 1 When expanding as an installation distributor with meter and distributor fields, combination sets or CombiLine modules
* 2 External dimensions are without flange embossing.
