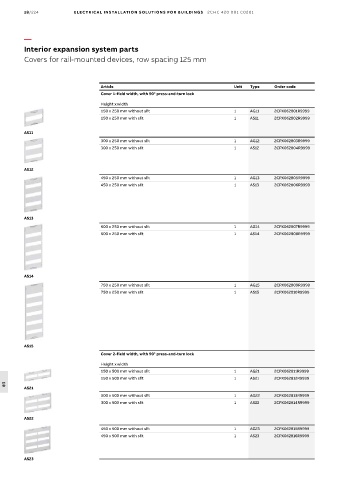

18/224 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Interior expansion system parts
Covers for rail-mounted devices, row spacing 125 mm

Article Unit Type Order code
Cover 1-field width, with 90° press-and-turn lock
Height x width
150 x 250 mm without slit 1 AG11 2CPX062801R9999
150 x 250 mm with slit 1 AS11 2CPX062802R9999

AS11
300 x 250 mm without slit 1 AG12 2CPX062803R9999
300 x 250 mm with slit 1 AS12 2CPX062804R9999

AS12
450 x 250 mm without slit 1 AG13 2CPX062805R9999
450 x 250 mm with slit 1 AS13 2CPX062806R9999

AS13
600 x 250 mm without slit 1 AG14 2CPX062807R9999
600 x 250 mm with slit 1 AS14 2CPX062808R9999

AS14
750 x 250 mm without slit 1 AG15 2CPX062809R9999
750 x 250 mm with slit 1 AS15 2CPX062810R9999

AS15
Cover 2-field width, with 90° press-and-turn lock
Height x width
150 x 500 mm without slit 1 AG21 2CPX062811R9999
150 x 500 mm with slit 1 AS21 2CPX062812R9999
AS21
18
300 x 500 mm without slit 1 AG22 2CPX062813R9999
300 x 500 mm with slit 1 AS22 2CPX062814R9999

AS22

450 x 500 mm without slit 1 AG23 2CPX062815R9999
450 x 500 mm with slit 1 AS23 2CPX062816R9999

AS23
