18/226 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

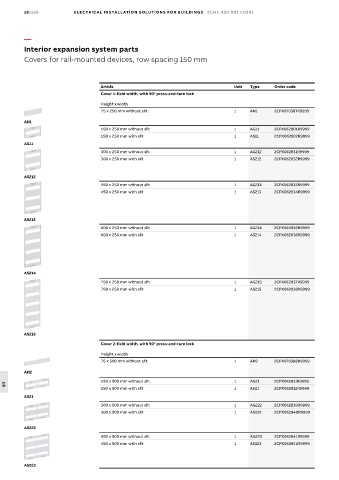

Interior expansion system parts
Covers for rail-mounted devices, row spacing 150 mm

Article Unit Type Order code
Cover 1-field width, with 90° press-and-turn lock
Height x width
75 x 250 mm without slit 1 AH1 2CPX070387R9999
AH1
150 x 250 mm without slit 1 AG11 2CPX062801R9999
150 x 250 mm with slit 1 AS11 2CPX062802R9999
AS11
300 x 250 mm without slit 1 AG212 2CPX062831R9999
300 x 250 mm with slit 1 AS212 2CPX062832R9999

AS212
450 x 250 mm without slit 1 AG213 2CPX062833R9999
450 x 250 mm with slit 1 AS213 2CPX062834R9999

AS213
600 x 250 mm without slit 1 AG214 2CPX062835R9999
600 x 250 mm with slit 1 AS214 2CPX062836R9999

AS214
750 x 250 mm without slit 1 AG215 2CPX062837R9999
750 x 250 mm with slit 1 AS215 2CPX062838R9999

AS215
Cover 2-field width, with 90° press-and-turn lock
Height x width
75 x 500 mm without slit 1 AH2 2CPX070388R9999
AH2
150 x 500 mm without slit 1 AG21 2CPX062811R9999
150 x 500 mm with slit 1 AS21 2CPX062812R9999
18
AS21
300 x 500 mm without slit 1 AG222 2CPX062839R9999
300 x 500 mm with slit 1 AS222 2CPX062840R9999

AS222
450 x 500 mm without slit 1 AG223 2CPX062841R9999
450 x 500 mm with slit 1 AS223 2CPX062842R9999

AS223
