18/229

—

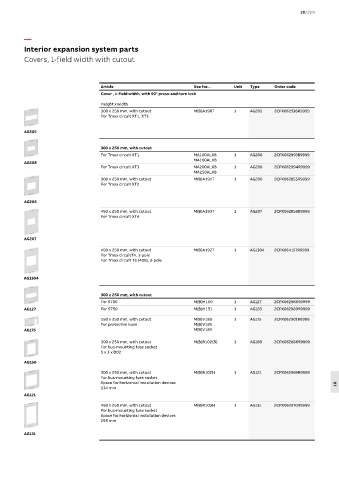

Interior expansion system parts
Covers, 1-field width with cutout

Article Use for... Unit Type Order code
Cover , 1-field width, with 90° press-and-turn lock
Height x width
300 x 250 mm, with cutout M(B)A190T 1 AG205 2CPX062936R9999
For Tmax circuit XT1, XT3

AG205

300 x 250 mm, with cutout
For Tmax circuit XT1 MA100ALXB 1 AG208 2CPX062993R9999
MA160ALXB
AG208
For Tmax circuit XT3 MA200ALXB 1 AG209 2CPX062994R9999
MA250ALXB
300 x 250 mm, with cutout M(B)A191T 1 AG206 2CPX062855R9999
For Tmax circuit XT2

AG206
450 x 250 mm, with cutout M(B)A193T 1 AG207 2CPX062856R9999
For Tmax circuit XT4

AG207
450 x 250 mm, with cutout M(B)A192T 1 AG1304 2CPX064157R9999
For Tmax circuitT4, 3-pole
For Tmax circuit T5 (400), 3-pole

AG1304

300 x 250 mm, with cutout
For S700 M(B)H150 1 AG127 2CPX062986R9999
AG127 For S750 M(B)H151 1 AG128 2CPX062989R9999

150 x 250 mm, with cutout M(B)V180 1 AG175 2CPX062901R9999
For protective hose M(B)V181
AG175 M(B)V182
300 x 250 mm, with cutout M(B)R102(B) 1 AG160 2CPX062886R9999
For bus-mounting fuse socket
5 x 3 x D02
AG160
300 x 250 mm, with cutout M(B)R102H 1 AG121 2CPX062969R9999
For bus-mounting fuse socket
Space for horizontal installation devices 18
134 mm
AG121
450 x 250 mm, with cutout M(B)R103H 1 AG131 2CPX062970R9999
For bus-mounting fuse socket
Space for horizontal installation devices
295 mm
AG131
