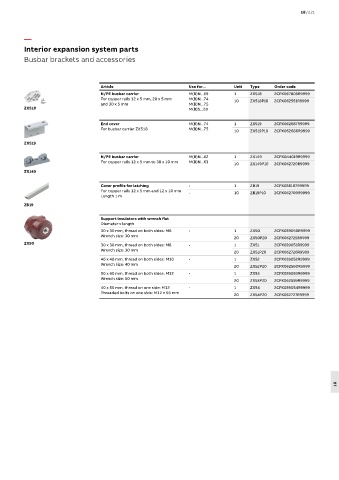

18/221

—
Interior expansion system parts
Busbar brackets and accessories

Article Use for... Unit Type Order code
N/PE busbar carrier M(B)N...69 1 ZX518 2CPX067805R9999
For copper rails 12 x 5 mm, 20 x 5 mm M(B)N...74 10 ZX518P10 2CPX062551R9999
and 30 x 5 mm M(B)N...75
ZX518 M(B)S...28

End cover M(B)N...74 1 ZX519 2CPX062687R9999
For busbar carrier ZX518 M(B)N...75
10 ZX519P10 2CPX062686R9999
ZX519

N/PE busbar carrier M(B)N...62 1 ZX149 2CPX044019R9999
For copper rails 12 x 5 mm to 30 x 10 mm M(B)N...63
10 ZX149P10 2CPX062720R9999
ZX149

Cover profile for latching - 1 ZB19 2CPX038187R9999
For copper rails 12 x 5 mm and 12 x 10 mm - 10 ZB19P10 2CPX062709R9999
Length 1 m
ZB19

Support insulators with wrench flat
Diameter x length
30 x 30 mm, thread on both sides: M6 - 1 ZX50 2CPX039050R9999
Wrench size: 30 mm 20 ZX50P20 2CPX062725R9999
ZX50 30 x 30 mm, thread on both sides: M8 - 1 ZX51 2CPX039051R9999
Wrench size: 30 mm 20 ZX51P20 2CPX062726R9999
40 x 40 mm, thread on both sides: M10 - 1 ZX52 2CPX039052R9999
Wrench size: 40 mm 20 ZX52P20 2CPX062560R9999
50 x 60 mm, thread on both sides: M12 - 1 ZX53 2CPX039053R9999
Wrench size: 50 mm 20 ZX53P20 2CPX062559R9999
40 x 50 mm, thread on one side: M12 - 1 ZX54 2CPX039054R9999
Threaded bolts on one side: M12 x 65 mm 20 ZX54P20 2CPX062727R9999

18
