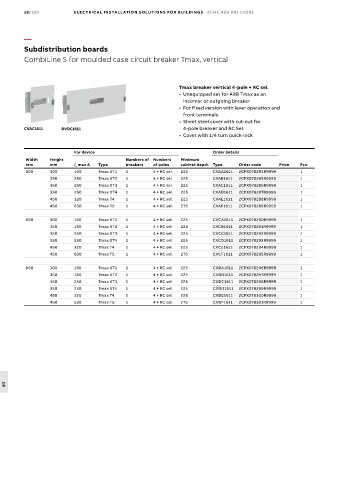

Page 2648 - Din prodcuts 2020

18/320 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S for moulded case circuit breaker Tmax, vertical

Tmax breaker vertical 4-pole + RC sel.
• Unequipped set for ABB Tmax as an
incomer or outgoing breaker
• For fixed version with lever operation and
front terminals
• Sheet steel cover with cut-out for
CVAC1611 DVDC1611 4-pole breaker and RC Sel.
• Cover with 1/4 turn quick-lock

For device Order details
Width Height Numbers of Numbers Minimum
mm mm I max A Type breakers of poles cabinet depth Type Order code Price Pcs.
n
300 300 160 Tmax XT1 1 4 + RC sel. 225 CVAA1611 2CPX078284R9999 1
350 250 Tmax XT2 1 4 + RC sel. 225 CVAB1611 2CPX078285R9999 1
350 250 Tmax XT3 1 4 + RC sel. 225 CVAC1611 2CPX078286R9999 1
350 250 Tmax XT4 1 4 + RC sel. 225 CVAD1611 2CPX078287R9999 1
450 320 Tmax T4 1 4 + RC sel. 225 CVAE1611 2CPX078288R9999 1
450 630 Tmax T5 1 4 + RC sel. 275 CVAF1611 2CPX078289R9999 1

600 300 160 Tmax XT1 1 4 + RC sel. 225 CVCA1611 2CPX078290R9999 1
350 160 Tmax XT2 1 4 + RC sel. 225 CVCB1611 2CPX078291R9999 1
350 250 Tmax XT3 1 4 + RC sel. 225 CVCC1611 2CPX078292R9999 1
350 250 Tmax XT4 1 4 + RC sel. 225 CVCD1611 2CPX078293R9999 1
450 320 Tmax T4 1 4 + RC sel. 225 CVCE1611 2CPX078294R9999 1
450 630 Tmax T5 1 4 + RC sel. 275 CVCF1611 2CPX078295R9999 1

800 300 160 Tmax XT1 1 4 + RC sel. 225 CVDA1611 2CPX078296R9999 1
350 160 Tmax XT2 1 4 + RC sel. 225 CVDB1611 2CPX078297R9999 1
350 250 Tmax XT3 1 4 + RC sel. 225 CVDC1611 2CPX078298R9999 1
350 250 Tmax XT4 1 4 + RC sel. 225 CVDD1611 2CPX078299R9999 1
450 320 Tmax T4 1 4 + RC sel. 225 CVDE1611 2CPX078300R9999 1
450 630 Tmax T5 1 4 + RC sel. 275 CVDF1611 2CPX078301R9999 1

18
