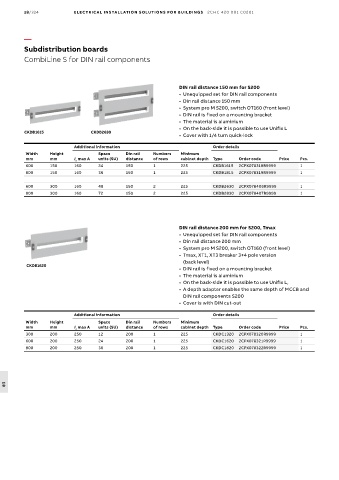

18/324 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Subdistribution boards
CombiLine S for DIN rail components

DIN rail distance 150 mm for S200
• Unequipped set for DIN rail components
• Din rail distance 150 mm
• System pro M S200, switch OT160 (front level)
• DIN rail is fixed on a mounting bracket
• The material is aluminium
• On the back-side it is possible to use Unifix L
CKDB1615 CKDB2630
• Cover with 1/4 turn quick-lock
Additional information Order details
Width Height Space Din rail Numbers Minimum
mm mm I max A units (SU) distance of rows cabinet depth Type Order code Price Pcs.
n
600 150 160 24 150 1 225 CKDB1615 2CPX078318R9999 1
800 150 160 36 150 1 225 CKDB1815 2CPX078319R9999 1

600 300 160 48 150 2 225 CKDB2630 2CPX078406R9999 1
800 300 160 72 150 2 225 CKDB2830 2CPX078407R9999 1

DIN rail distance 200 mm for S200, Tmax
• Unequipped set for DIN rail components
• Din rail distance 200 mm
• System pro M S200, switch OT160 (front level)
• Tmax, XT1, XT3 breaker 3+4 pole version
(back level)
CKDB1620
• DIN rail is fixed on a mounting bracket
• The material is aluminium
• On the back-side it is possible to use Unifix L,
• A depth adapter enables the same depth of MCCB and
DIN rail components S200
• Cover is with DIN cut-out
Additional information Order details
Width Height Space Din rail Numbers Minimum
mm mm I max A units (SU) distance of rows cabinet depth Type Order code Price Pcs.
n
300 200 250 12 200 1 225 CKDC1320 2CPX078320R9999 1
600 200 250 24 200 1 225 CKDC1620 2CPX078321R9999 1
800 200 250 36 200 1 225 CKDC1820 2CPX078322R9999 1
