19/15

—

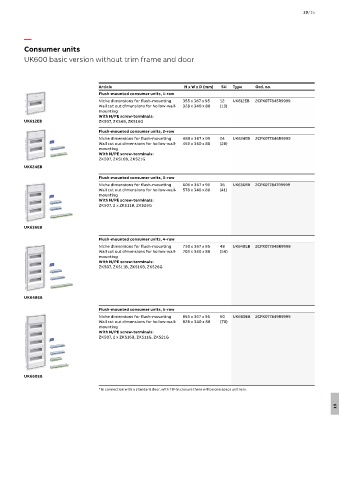

Consumer units
UK600 basic version without trim frame and door

Article H x W x D (mm) SU Type Ord. no.
Flush-mounted consumer units, 1-row
Niche dimensions for flush-mounting 355 x 367 x 95 12 UK612EB 2CPX077845R9999
Wall cut out dimensions for hollow-wall- 328 x 340 x 88 (13)
mounting
With N/PE screw-terminals:
UK612EB ZK507, ZKS6B, ZKS16G
Flush-mounted consumer units, 2-row
Niche dimensions for flush-mounting 480 x 367 x 95 24 UK624EB 2CPX077846R9999
Wall cut out dimensions for hollow-wall- 453 x 340 x 88 (28)
mounting
With N/PE screw-terminals:
ZK507, ZKS16B, ZKS21G

UK624EB
Flush-mounted consumer units, 3-row
Niche dimensions for flush-mounting 605 x 367 x 95 36 UK636EB 2CPX077847R9999
Wall cut out dimensions for hollow-wall- 578 x 340 x 88 (41)
mounting
With N/PE screw-terminals:
ZK507, 2 x ZKS11B, ZKS26G

UK636EB

Flush-mounted consumer units, 4-row
Niche dimensions for flush-mounting 730 x 367 x 95 48 UK648EB 2CPX077848R9999
Wall cut out dimensions for hollow-wall- 703 x 340 x 88 (56)
mounting
With N/PE screw-terminals:
ZK507, ZKS11B, ZKS16B, ZKS26G

UK648EB
Flush-mounted consumer units, 5-row
Niche dimensions for flush-mounting 855 x 367 x 95 60 UK660EB 2CPX077849R9999
Wall cut out dimensions for hollow-wall- 828 x 340 x 88 (70)
mounting
With N/PE screw-terminals:
ZK507, 2 x ZKS16B, ZKS11G, ZKS21G

UK660EB

* In connection with a standard door, with TIP-in closure there will be one space unit less.
