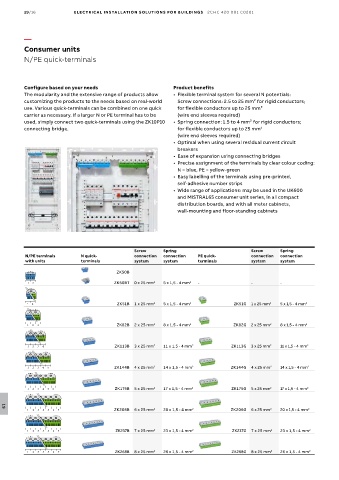

Consumer units
N/PE quick-terminals

Configure based on your needs Product benefits
The modularity and the extensive range of products allow • Flexible terminal system for several N potentials:
customizing the products to the needs based on real-world Screw connections: 2.5 to 25 mm² for rigid conductors;
use. Various quick-terminals can be combined on one quick for flexible conductors up to 25 mm²
carrier as necessary. If a larger N or PE terminal has to be (wire end sleeves required)
used, simply connect two quick-terminals using the ZK10P10 • Spring connection: 1.5 to 4 mm² for rigid conductors;
connecting bridge. for flexible conductors up to 25 mm
2
(wire end sleeves required)
• Optimal when using several residual current circuit
breakers
• Ease of expansion using connecting bridges
• Precise assignment of the terminals by clear colour coding:
N = blue, PE = yellow-green
• Easy labelling of the terminals using pre-printed,
self-adhesive number strips
• Wide range of applications: may be used in the UK600
and MISTRAL65 consumer unit series, in all compact
distribution boards, and with all meter cabinets,
wall-mounting and floor-standing cabinets

Screw Spring Screw Spring
N/PE terminals N quick- connection connection PE quick- connection connection
with units terminals system system terminals system system
ZK50B

2
1 2 ZK50BT 0 x 25 mm 5 x 1,5 - 4 mm 2 - - -

2
1 2 ZK51B 1 x 25 mm 5 x 1,5 - 4 mm 2 ZK51G 1 x 25 mm 2 5 x 1,5 - 4 mm 2

2
1 2 3 ZK82B 2 x 25 mm 8 x 1,5 - 4 mm 2 ZK82G 2 x 25 mm 2 8 x 1,5 - 4 mm 2

2
1 2 3 4 ZK113B 3 x 25 mm 11 x 1,5 - 4 mm 2 ZK113G 3 x 25 mm 2 11 x 1,5 - 4 mm 2

2
1 2 3 4 5 ZK144B 4 x 25 mm 14 x 1,5 - 4 mm 2 ZK144G 4 x 25 mm 2 14 x 1,5 - 4 mm 2

1 2 3 4 5 6 ZK175B 5 x 25 mm 17 x 1,5 - 4 mm 2 ZK175G 5 x 25 mm 2 17 x 1,5 - 4 mm 2
2

2
1 2 3 4 5 6 7 ZK206B 6 x 25 mm 20 x 1,5 - 4 mm 2 ZK206G 6 x 25 mm 2 20 x 1,5 - 4 mm 2
19

2
1 2 3 4 5 6 7 ZK237B 7 x 25 mm 23 x 1,5 - 4 mm 2 ZK237G 7 x 25 mm 2 23 x 1,5 - 4 mm 2

2
1 2 3 4 5 6 7 ZK268B 8 x 25 mm 26 x 1,5 - 4 mm 2 ZK268G 8 x 25 mm 2 26 x 1,5 - 4 mm 2
