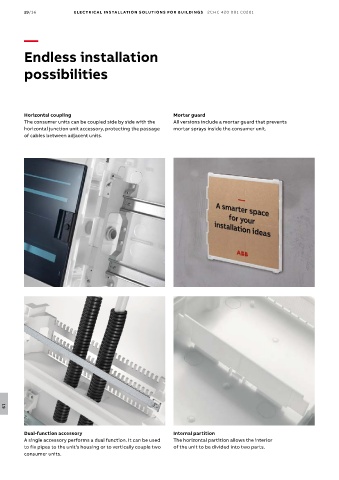

19/36            ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS   2CHC 420 001 C0201



          —

          Endless installation


          possibilities








          Horizontal coupling                                 Mortar guard
          The consumer units can be coupled side by side with the   All versions include a mortar guard that prevents
          horizontal junction unit accessory, protecting the passage   mortar sprays inside the consumer unit.
          of cables between adjacent units.



























































  19


          Dual-function accessory                             Internal partition
          A single accessory performs a dual function. It can be used   The horizontal partition allows the interior
          to fix pipes to the unit's housing or to vertically couple two   of the unit to be divided into two parts.
          consumer units.
