19/37



          —

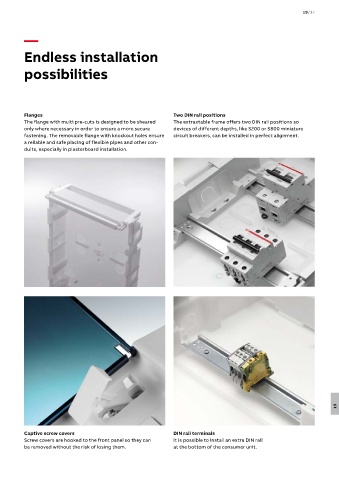

          Endless installation


          possibilities








          Flanges                                             Two DIN rail positions
          The flange with multi pre-cuts is designed to be sheared   The extraxtable frame offers two DIN rail positions so
          only where necessary in order to ensure a more secure    devices of different depths, like S200 or S800 miniature
          fastening. The removable flange with knockout holes ensure   circuit breakers, can be installed in perfect alignment.
          a reliable and safe placing of flexible pipes and other con-
          duits, especially in plasterboard installation.






















































                                                                                                                       19




          Captive screw covers                                DIN rail terminals
          Screw covers are hooked to the front panel so they can    It is possible to install an extra DIN rail
          be removed without the risk of losing them.         at the bottom of the consumer unit.
