A versatile range suitable

for every application

The simple construction of the MISTRAL41F series makes the units fast and easy
to assemble. What is more, the flexible design allows easy adaptation to various

application requirements.

5

1
6
7

2

4

3a
8

5

6
1
9 7
2

4

3b 8

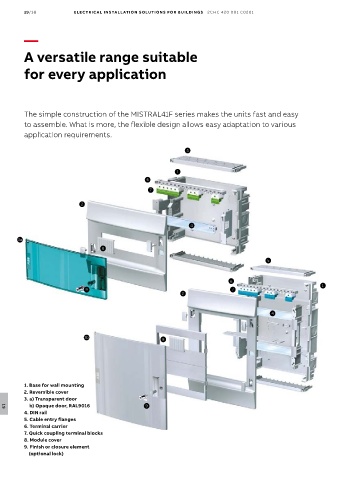

1. Base for wall mounting
2. Reversible cover
3. a) Transparent door
b) Opaque door, RAL9016 9
19
4. DIN rail
5. Cable entry flanges
6. Terminal carrier
7. Quick coupling terminal blocks
8. Module cover
9. Finish or closure element
(optional lock)
