19/41

—
Consumer units

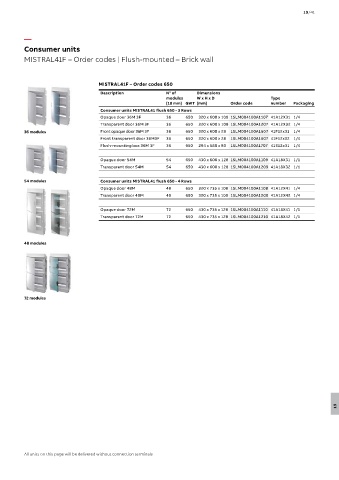

MISTRAL41F – Order codes | Flush-mounted – Brick wall

MISTRAL41F – Order codes 650
Description N° of Dimensions
modules W x H x D Type
[18 mm] GWT [mm] Order code number Packaging
Consumer units MISTRAL41 flush 650 - 3 Rows
Opaque door 36M 3F 36 650 320 x 600 x 108 1SLM004100A1107 41A12X31 1/4
Transparent door 36M 3F 36 650 320 x 600 x 108 1SLM004100A1207 41A12X32 1/4
36 modules Front opaque door 36M 3F 36 650 320 x 600 x 28 1SLM004100A1507 41F12x31 1/4
Front transparent door 36M3F 36 650 320 x 600 x 28 1SLM004100A1607 41F12x32 1/4
Flush-mounting box 36M 3F 36 650 294 x 580 x 80 1SLM004100A1707 41S12x31 1/4

Opaque door 54M 54 650 430 x 600 x 128 1SLM004100A1109 41A18X31 1/1
Transparent door 54M 54 650 430 x 600 x 128 1SLM004100A1209 41A18X32 1/1

54 modules Consumer units MISTRAL41 flush 650 - 4 Rows
Opaque door 48M 48 650 320 x 735 x 108 1SLM004100A1108 41A12X41 1/4
Transparent door 48M 48 650 320 x 735 x 108 1SLM004100A1208 41A12X42 1/4

Opaque door 72M 72 650 430 x 735 x 128 1SLM004100A1110 41A18X41 1/1
Transparent door 72M 72 650 430 x 735 x 128 1SLM004100A1210 41A18X42 1/1

48 modules

72 modules

19

All units on this page will be delivered without connection terminals
