19/59

—
Consumer units

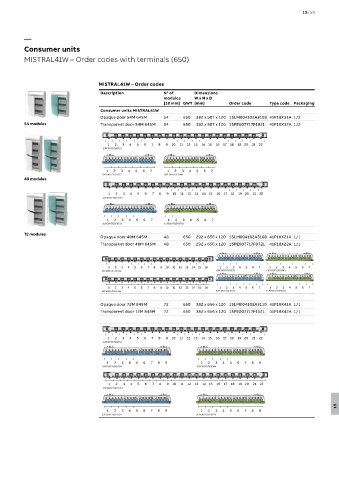

MISTRAL41W – Order codes with terminals (650)

MISTRAL41W – Order codes
Description N° of Dimensions
modules W x H x D
[18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL41W
Opaque door 54M 64SM 54 650 382 x 507 x 120 1SLM004102A3109 41P18X31A 1/2
54 modules Transparent door 54M 64SM 54 650 382 x 507 x 120 1SPE007717F1021 41P18X32A 1/2

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1SPE007715F0753

1 2 3 4 5 6 7 1 2 3 4 5 6 7
1SPE007715F0733 1SPE007715F0743
48 modules

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1SPE007715F0753

1 2 3 4 5 6 7 1 2 3 4 5 6 7
1SPE007715F0733 1SPE007715F0743
72 modules
Opaque door 48M 64SM 48 650 292 x 656 x 120 1SLM004102A3108 41P18X21A 1/1
Transparent door 48M 64SM 48 650 292 x 656 x 120 1SPE007717F0721 41P18X22A 1/1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 1 2 3 4 5 6 7
1SPE007715F0752 1SPE007715F0733 1SPE007715F0743

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 6 7 1 2 3 4 5 6 7
1SPE007715F0752 1SPE007715F0733 1SPE007715F0743
Opaque door 72M 84SM 72 650 382 x 656 x 120 1SLM004102A3110 41P18X41A 1/1
Transparent door 72M 84SM 72 650 382 x 656 x 120 1SPE007717F1121 41P18X42A 1/1

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1SPE007715F0753

1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
1SPE007715F0734 1SPE007715F0744

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
1SPE007715F0753

19
1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9
1SPE007715F0734 1SPE007715F0744
