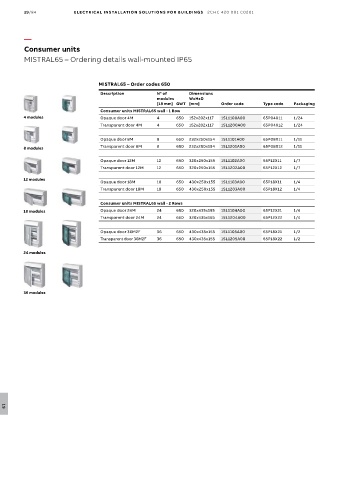

19/84 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Consumer units
MISTRAL65 – Ordering details wall-mounted IP65

MISTRAL65 – Order codes 650
Description N° of Dimensions
modules WxHxD
[18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL65 wall - 1 Row
4 modules Opaque door 4M 4 650 152x202x117 1SL1100A00 65P04X11 1/24
Transparent door 4M 4 650 152x202x117 1SL1200A00 65P04X12 1/24

Opaque door 8M 8 650 232x250x154 1SL1101A00 65P08X11 1/11
8 modules Transparent door 8M 8 650 232x250x154 1SL1201A00 65P08X12 1/11

Opaque door 12M 12 650 320x250x155 1SL1102A00 65P12X11 1/7
Transparent door 12M 12 650 320x250x155 1SL1202A00 65P12X12 1/7

12 modules
Opaque door 18M 18 650 430x250x155 1SL1103A00 65P18X11 1/4
Transparent door 18M 18 650 430x250x155 1SL1203A00 65P18X12 1/4

Consumer units MISTRAL65 wall - 2 Rows
18 modules Opaque door 24M 24 650 320x435x155 1SL1104A00 65P12X21 1/4
Transparent door 24M 24 650 320x435x155 1SL1204A00 65P12X22 1/4

Opaque door 36M2F 36 650 430x435x155 1SL1105A00 65P18X21 1/2
Transparent door 36M2F 36 650 430x435x155 1SL1205A00 65P18X22 1/2

24 modules

36 modules
