19/85

—
Consumer units

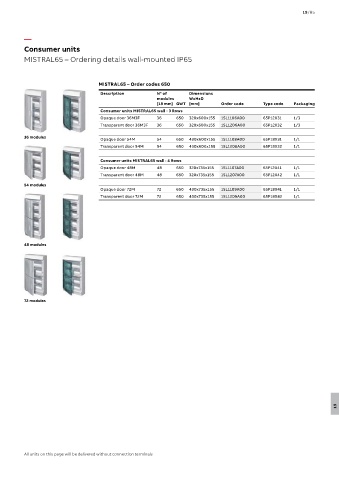

MISTRAL65 – Ordering details wall-mounted IP65

MISTRAL65 – Order codes 650
Description N° of Dimensions
modules WxHxD
[18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL65 wall - 3 Rows
Opaque door 36M3F 36 650 320x600x155 1SL1106A00 65P12X31 1/3
Transparent door 36M3F 36 650 320x600x155 1SL1206A00 65P12X32 1/3

36 modules
Opaque door 54M 54 650 430x600x155 1SL1108A00 65P18X31 1/1
Transparent door 54M 54 650 430x600x155 1SL1208A00 65P18X32 1/1

Consumer units MISTRAL65 wall - 4 Rows
Opaque door 48M 48 650 320x735x155 1SL1107A00 65P12X41 1/1
Transparent door 48M 48 650 320x735x155 1SL1207A00 65P12X42 1/1
54 modules
Opaque door 72M 72 650 430x735x155 1SL1109A00 65P18X41 1/1
Transparent door 72M 72 650 430x735x155 1SL1209A00 65P18X42 1/1

48 modules

72 modules

19

All units on this page will be delivered without connection terminals
