19/88 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Consumer units

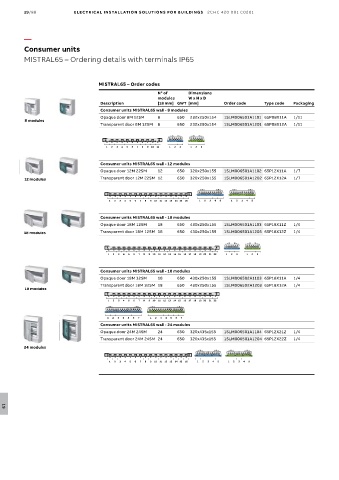

MISTRAL65 – Ordering details with terminals IP65

MISTRAL65 – Order codes
N° of Dimensions
modules W x H x D
Description [18 mm] GWT [mm] Order code Type code Packaging
Consumer units MISTRAL65 wall - 8 modules
Opaque door 8M 12SM 8 650 232x250x154 1SLM006501A1101 65P08X11A 1/11
8 modules
Transparent door 8M 12SM 8 650 232x250x154 1SLM006501A1201 65P08X12A 1/11

1 2 3 4 5 6 7 8 9 10 11 1 2 3 1 2 3

Consumer units MISTRAL65 wall - 12 modules
Opaque door 12M 22SM 12 650 320x250x155 1SLM006501A1102 65P12X11A 1/7
12 modules Transparent door 12M 22SM 12 650 320x250x155 1SLM006501A1202 65P12X12A 1/7

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 1 2 3 4 5

Consumer units MISTRAL65 wall - 18 modules
Opaque door 18M 12SM 18 650 430x250x155 1SLM006501A1103 65P18X11Z 1/4
18 modules Transparent door 18M 12SM 18 650 430x250x155 1SLM006501A1203 65P18X12Z 1/4

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 1 2 3 1 2 3

Consumer units MISTRAL65 wall - 18 modules
Opaque door 18M 32SM 18 650 430x250x155 1SLM006502A1103 65P18X11A 1/4
Transparent door 18M 32SM 18 650 430x250x155 1SLM006502A1203 65P18X12A 1/4
18 modules

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

1 2 3 4 5 6 7 1 2 3 4 5 6 7
Consumer units MISTRAL65 wall - 24 modules
Opaque door 24M 24SM 24 650 320x435x155 1SLM006501A1104 65P12X21Z 1/4
Transparent door 24M 24SM 24 650 320x435x155 1SLM006501A1204 65P12X22Z 1/4
24 modules

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 1 2 3 4 5 1 2 3 4 5
