20/10 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—

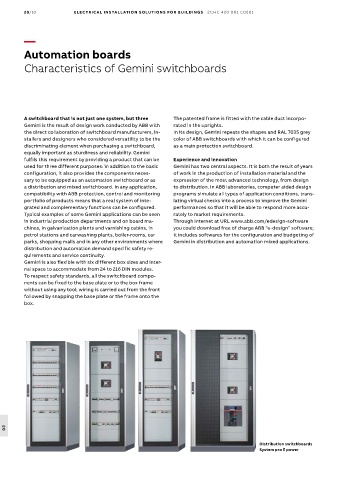

Automation boards

Characteristics of Gemini switchboards

A switchboard that is not just one system, but three The patented frame is fitted with the cable duct incorpo-
Gemini is the result of design work conducted by ABB with rated in the uprights.
the direct collaboration of switchboard manufacturers, in- In its design, Gemini repeats the shapes and RAL 7035 grey
stallers and designers who considered versatility to be the color of ABB switchboards with which it can be configured
discriminating element when purchasing a switchboard, as a main protection switchboard.
equally important as sturdiness and reliability. Gemini
fulfils this requirement by providing a product that can be Experience and innovation
used for three different purposes: in addition to the basic Gemini has two central aspects. It is both the result of years
configuration, it also provides the components neces- of work in the production of installation material and the
sary to be equipped as an automation switchboard or as expression of the most advanced technology, from design
a distribution and mixed switchboard. In any application, to distribution. In ABB laboratories, computer aided design
compatibility with ABB protection, control and monitoring programs simulate all types of application conditions, trans-
portfolio of products means that a real system of inte- lating virtual checks into a process to improve the Gemini
grated and complementary functions can be configured. performances so that it will be able to respond more accu-
Typical examples of some Gemini applications can be seen rately to market requirements.
in industrial production departments and on board ma- Through Internet at URL www.abb.com/edesign-software
chines, in galvanization plants and varnishing cabins, in you could download free of charge ABB “e-design” software;
petrol stations and carwashing plants, boiler-rooms, car it includes softwares for the configuration and budgeting of
parks, shopping malls and in any other environments where Gemini in distribution and automation mixed applications.
distribution and automation demand specific safety re-
quirements and service continuity.
Gemini is also flexible with six different box sizes and inter-
nal space to accommodate from 24 to 216 DIN modules.
To respect safety standards, all the switchboard compo-
nents can be fixed to the base plate or to the box frame
without using any tool; wiring is carried out from the front
followed by snapping the base plate or the frame onto the
box.

20

Distribution switchboards
System pro E power
