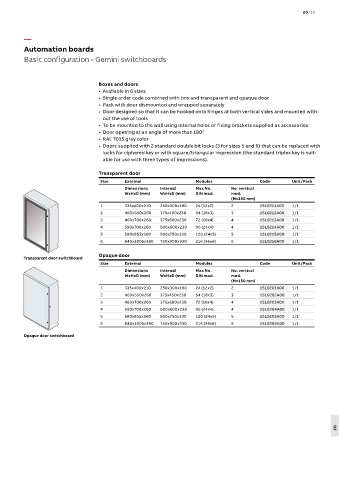

Automation boards
Basic configuration - Gemini switchboards

Boxes and doors
• Available in 6 sizes
• Single order code combined with box and transparent and opaque door
• Pack with door dismounted and wrapped separately
• Door designed so that it can be hooked onto hinges at both vertical sides and mounted with-
out the use of tools
• To be mounted to the wall using internal holes or fixing brackets supplied as accessories
• Door opening at an angle of more than 180°
• RAL 7035 grey color
• Doors supplied with 2 standard double bit locks (3 for sizes 5 and 6) that can be replaced with
locks for ciphered key or with square/triangular impression (the standard triplex key is suit-
able for use with three types of impressions).

Transparent door
Size External Modules Code Unit/Pack
Dimensions Internal Max No. No. vertical
WxHxD (mm) WxHxD (mm) DIN mod. mod.
(H=150 mm)
1 335x400x210 250x300x180 24 (12x2) 2 1SL0211A00 1/1
2 460x550x260 375x450x230 54 (18x3) 3 1SL0212A00 1/1
3 460x700x260 375x600x230 72 (18x4) 4 1SL0213A00 1/1
4 590x700x260 500x600x230 96 (24x4) 4 1SL0214A00 1/1
5 590x855x360 500x750x330 120 (24x5) 5 1SL0215A00 1/1
6 840x1005x360 750x900x330 216 (36x6) 6 1SL0216A00 1/1

Opaque door
Transparent door switchboard
Size External Modules Code Unit/Pack
Dimensions Internal Max No. No. vertical
WxHxD (mm) WxHxD (mm) DIN mod. mod.
(H=150 mm)
1 335x400x210 250x300x180 24 (12x2) 2 1SL0201A00 1/1
2 460x550x260 375x450x230 54 (18x3) 3 1SL0202A00 1/1
3 460x700x260 375x600x230 72 (18x4) 4 1SL0203A00 1/1
4 590x700x260 500x600x230 96 (24x4) 4 1SL0204A00 1/1
5 590x855x360 500x750x330 120 (24x5) 5 1SL0205A00 1/1
6 840x1005x360 750x900x330 216 (36x6) 6 1SL0206A00 1/1

Opaque door switchboard
