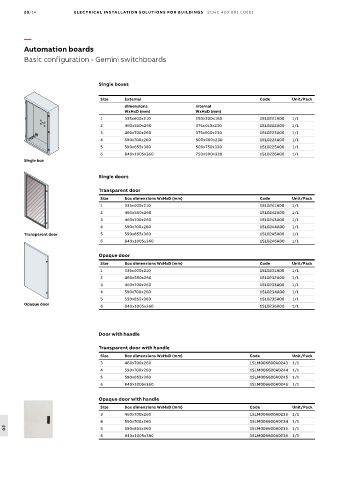

20/14 ELECTRICAL INSTALL ATION SOLUTIONS FOR BUILDINGS 2CHC 420 001 C0201

—
Automation boards
Basic configuration - Gemini switchboards

Single boxes

Size External Code Unit/Pack
dimensions Internal
WxHxD (mm) WxHxD (mm)
1 335x400x210 250x300x180 1SL0221A00 1/1
2 460x550x260 375x450x230 1SL0222A00 1/1
3 460x700x260 375x600x230 1SL0223A00 1/1
4 590x700x260 500x600x230 1SL0224A00 1/1
5 590x855x360 500x750x330 1SL0225A00 1/1
6 840x1005x360 750x900x330 1SL0226A00 1/1
Single box

Single doors

Transparent door
Size Box dimensions WxHxD (mm) Code Unit/Pack
1 335x400x210 1SL0241A00 1/1
2 460x550x260 1SL0242A00 1/1
3 460x700x260 1SL0243A00 1/1
4 590x700x260 1SL0244A00 1/1
Transparent door 5 590x855x360 1SL0245A00 1/1
6 840x1005x360 1SL0246A00 1/1

Opaque door
Size Box dimensions WxHxD (mm) Code Unit/Pack
1 335x400x210 1SL0231A00 1/1
2 460x550x260 1SL0232A00 1/1
3 460x700x260 1SL0233A00 1/1
4 590x700x260 1SL0234A00 1/1
5 590x855x360 1SL0235A00 1/1
Opaque door 6 840x1005x360 1SL0236A00 1/1

Door with handle

Transparent door with handle
Size Box dimensions WxHxD (mm) Code Unit/Pack
3 460x700x260 1SLM006600A0243 1/1
4 590x700x260 1SLM006600A0244 1/1
5 590x855x360 1SLM006600A0245 1/1
6 840x1005x360 1SLM006600A0246 1/1

Opaque door with handle
Size Box dimensions WxHxD (mm) Code Unit/Pack
3 460x700x260 1SLM006600A0233 1/1
4 590x700x260 1SLM006600A0234 1/1
5 590x855x360 1SLM006600A0235 1/1
20
6 840x1005x360 1SLM006600A0236 1/1
